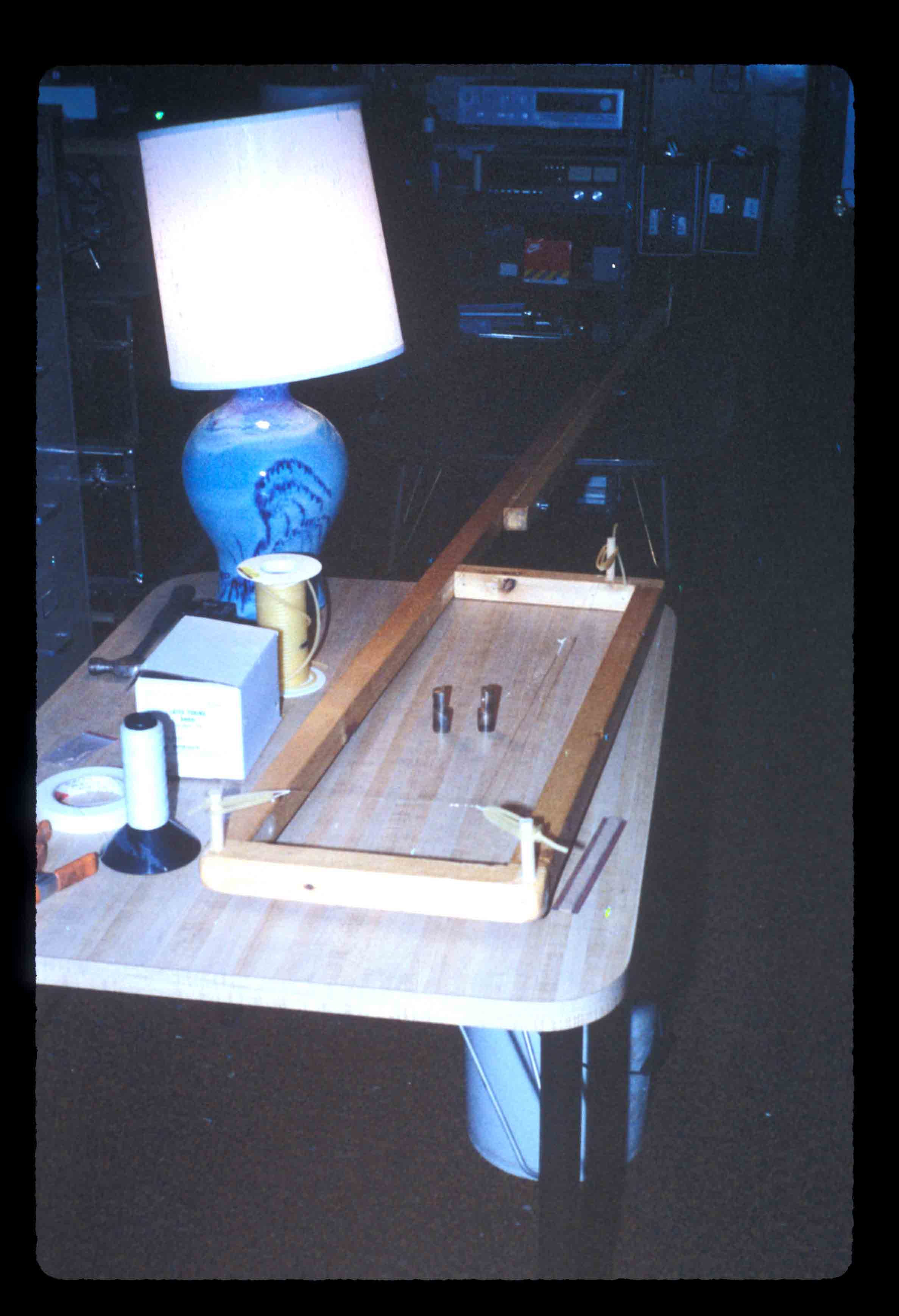

This is the mounting for gold wire, with pickups on the two near corners. The two lengths are quite different. |
 |
|
This is a kind of optical resonator that fuctioned as a filter. The earliest form shown here used plastic rods and retroreflectors and was mounted vibration-free. |
 |
|

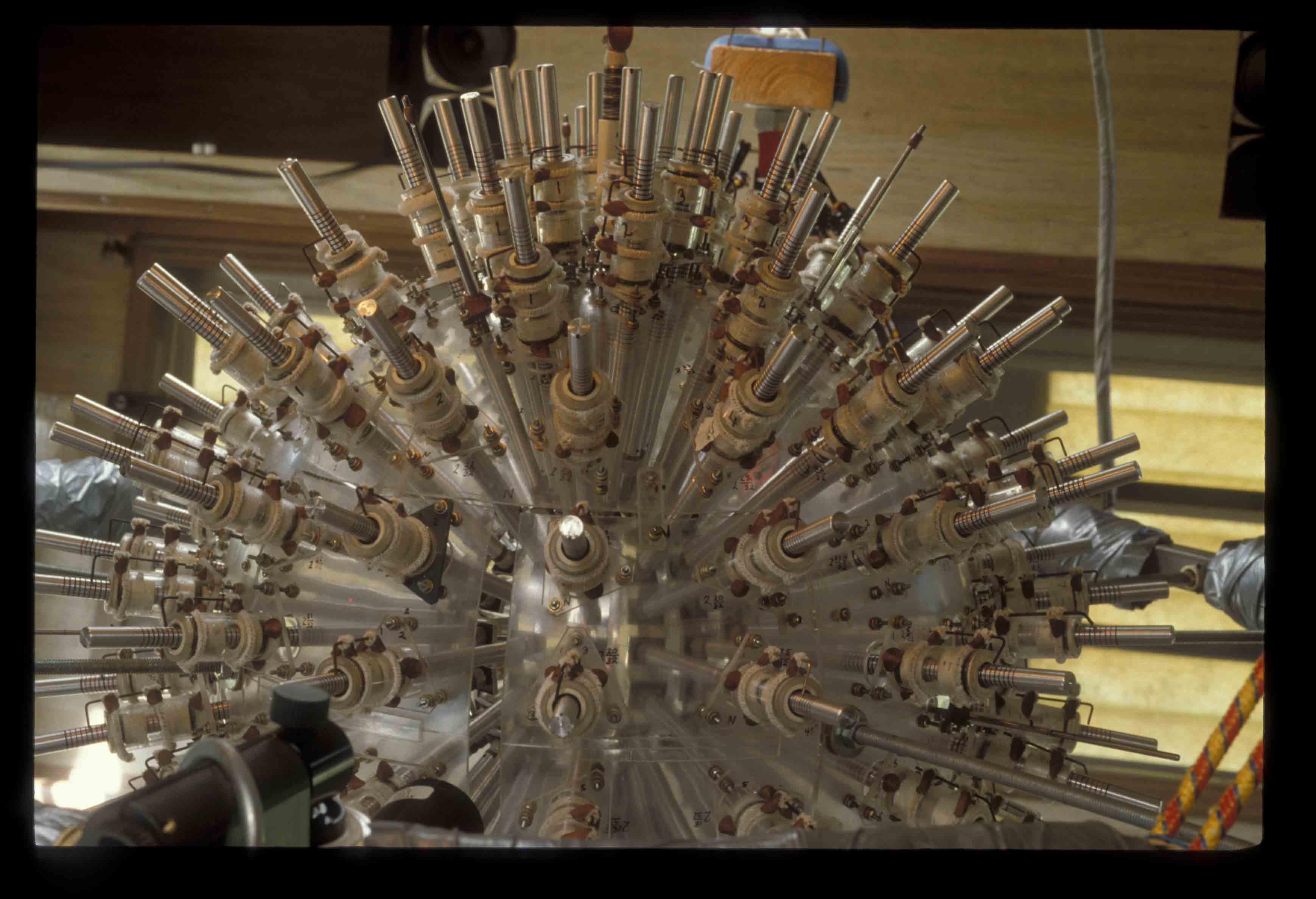

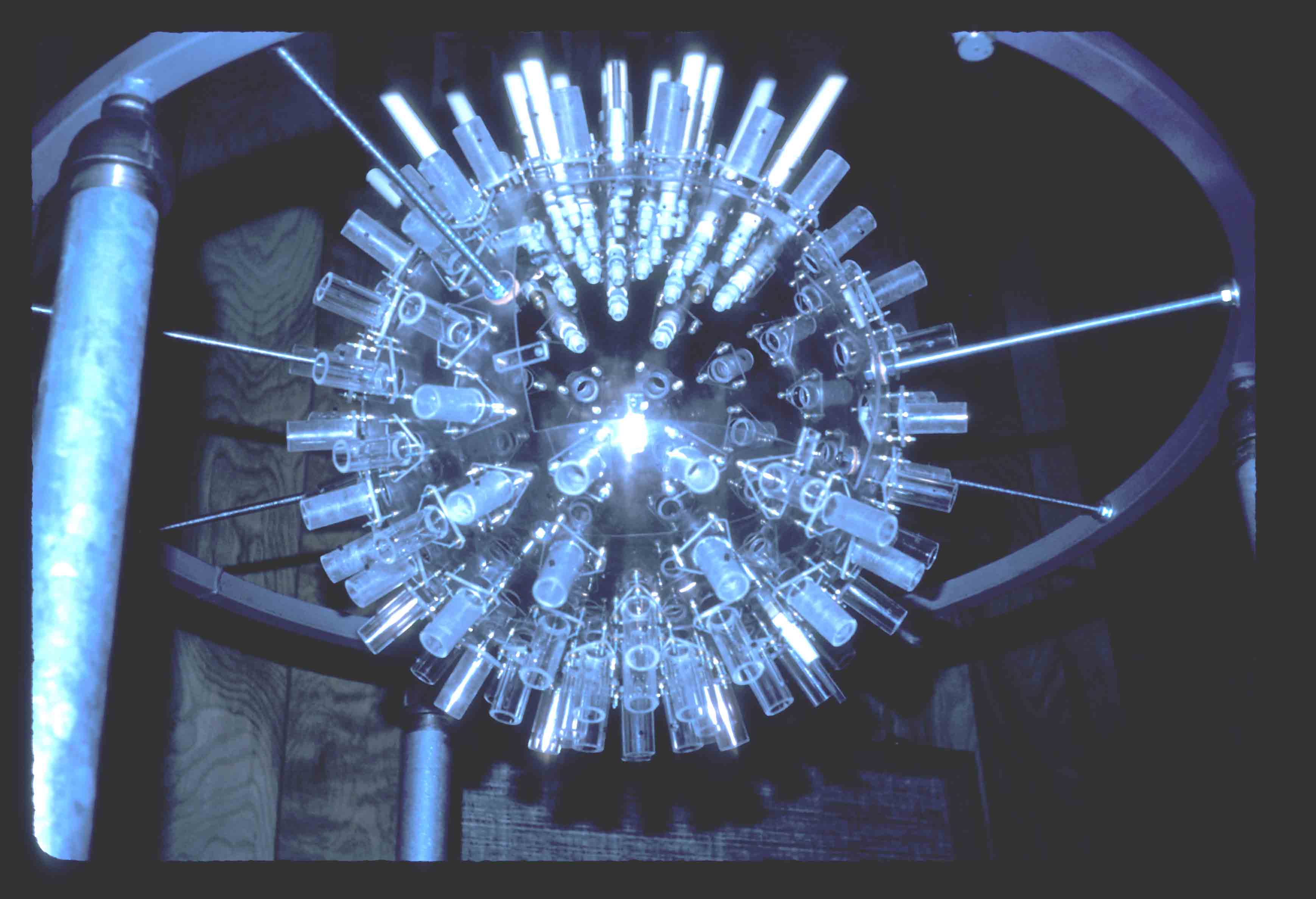

Early mounting of the optical resonator (1986); central crystal is a quartz sphere with a facet for each mirror. Note He-Ne laser which with a photodiode detected crystal vibrations. |
 |
|

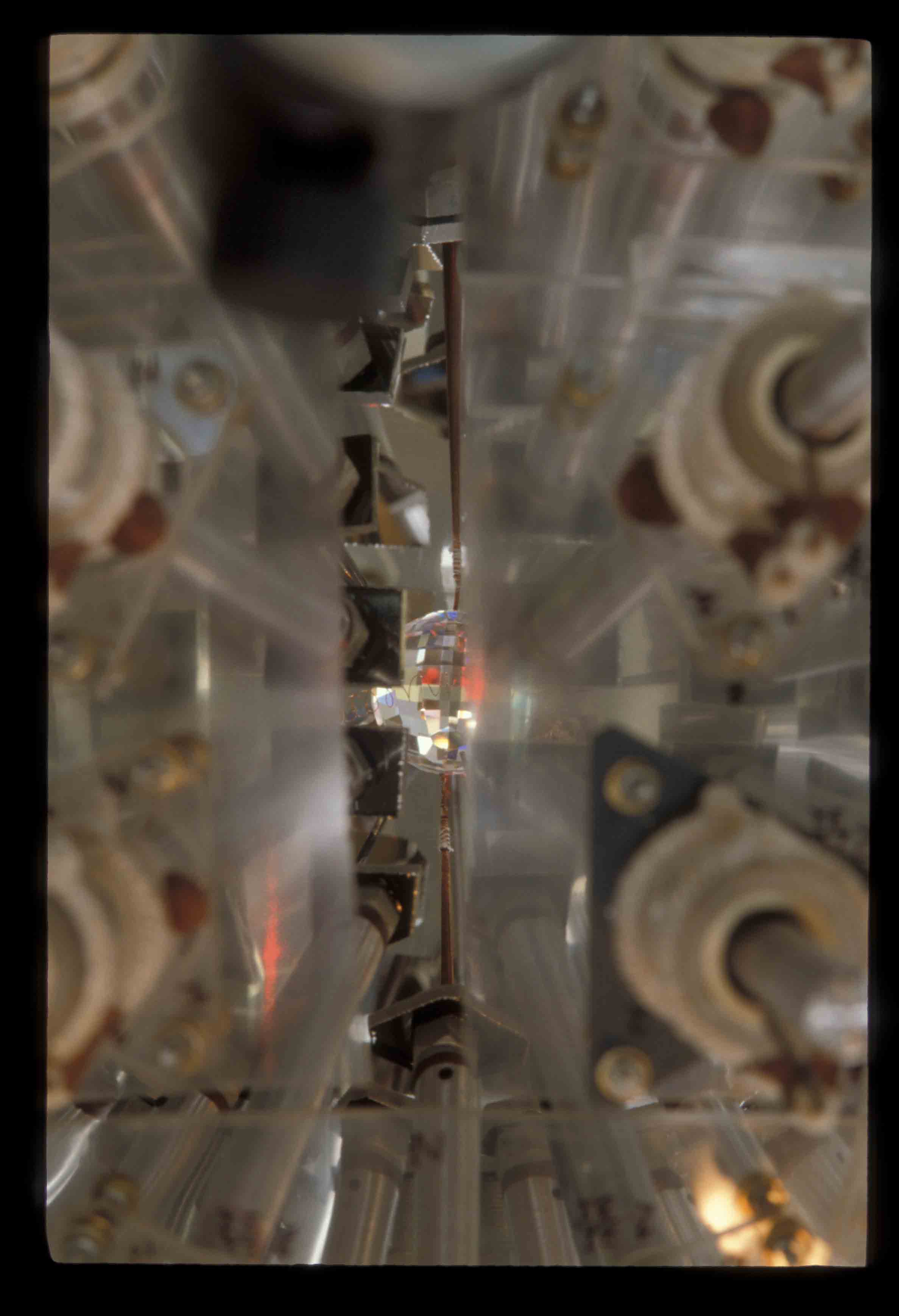

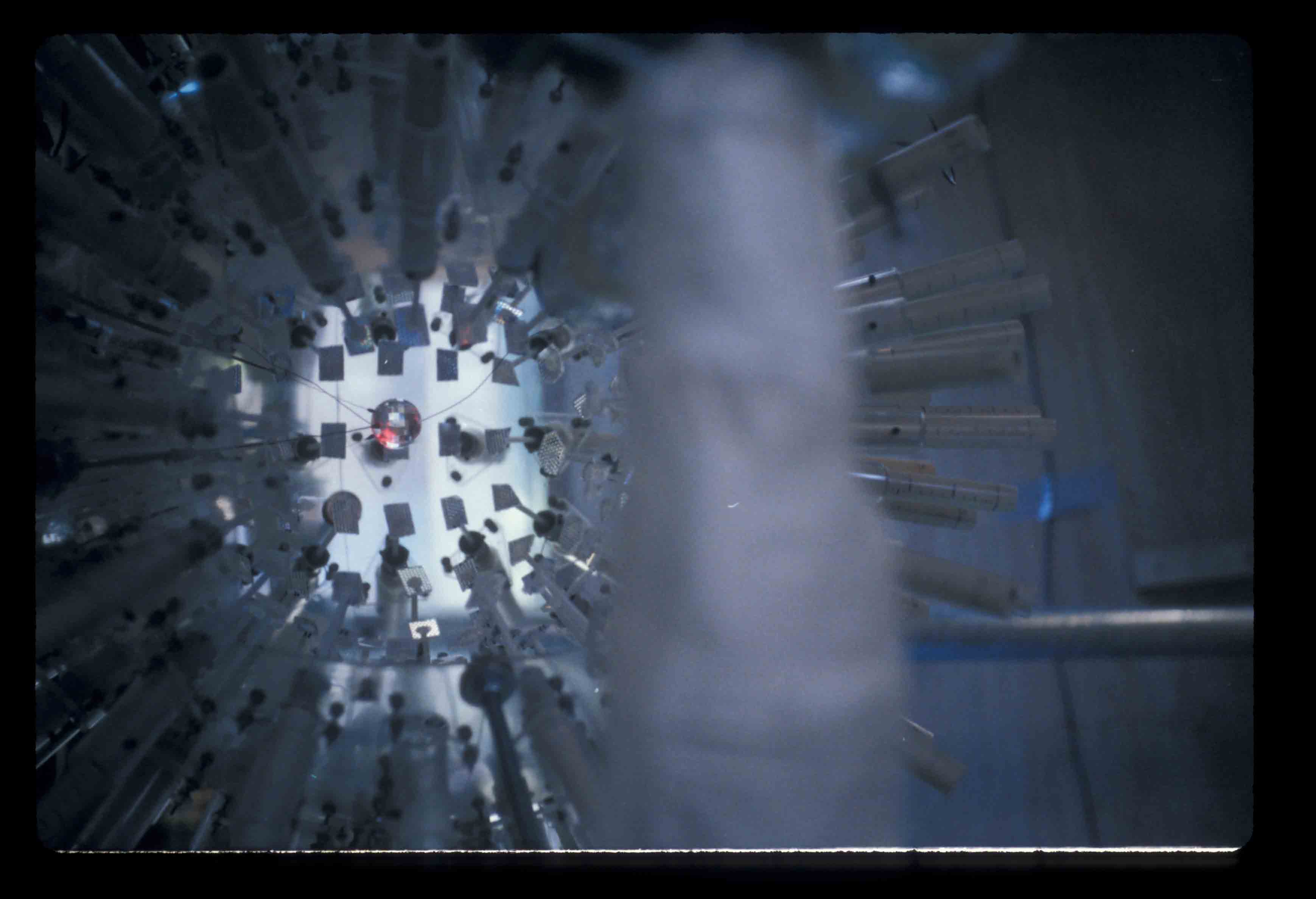

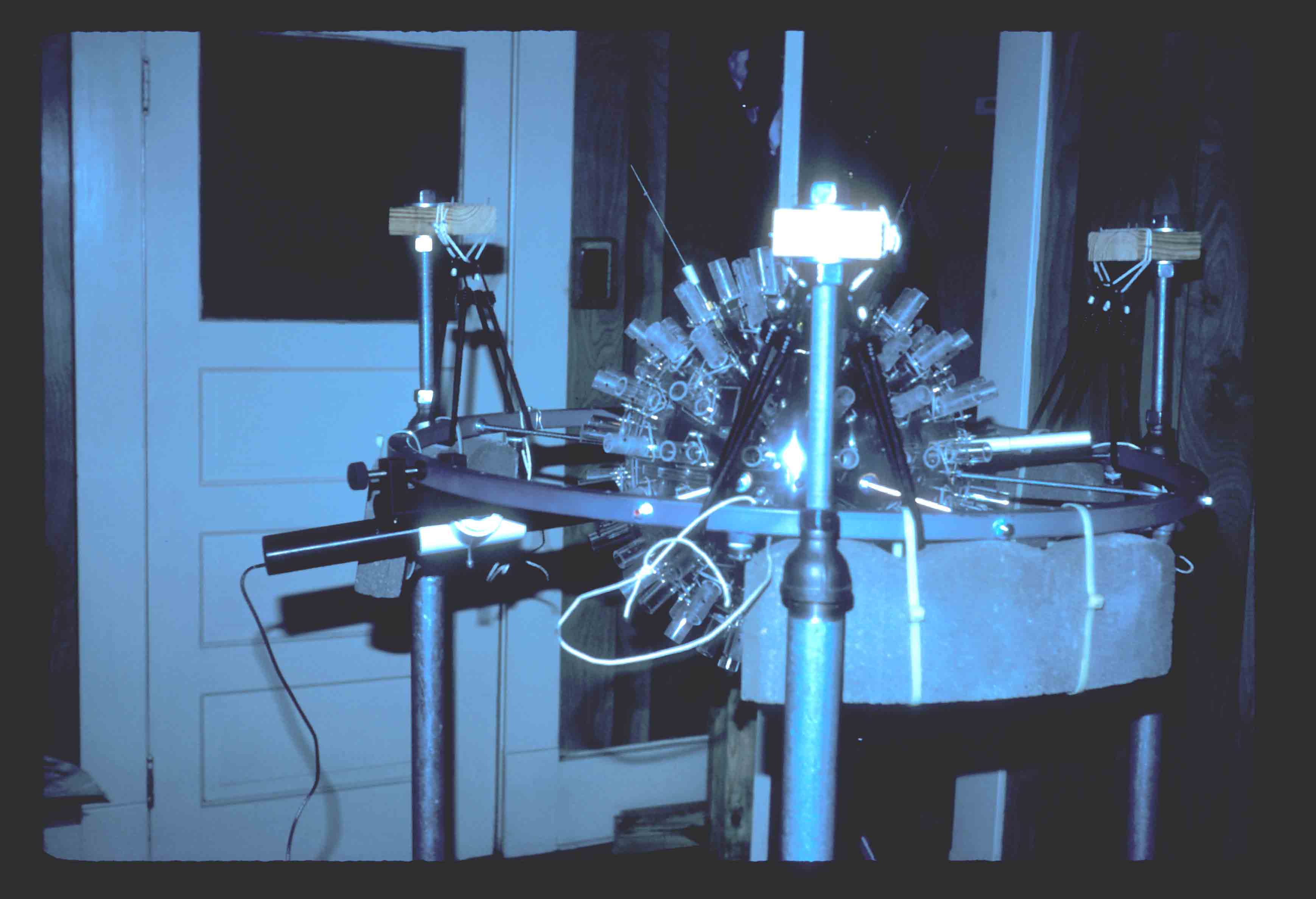

1986 early crystal mounting, suspended by tungsten filaments |
 |
|

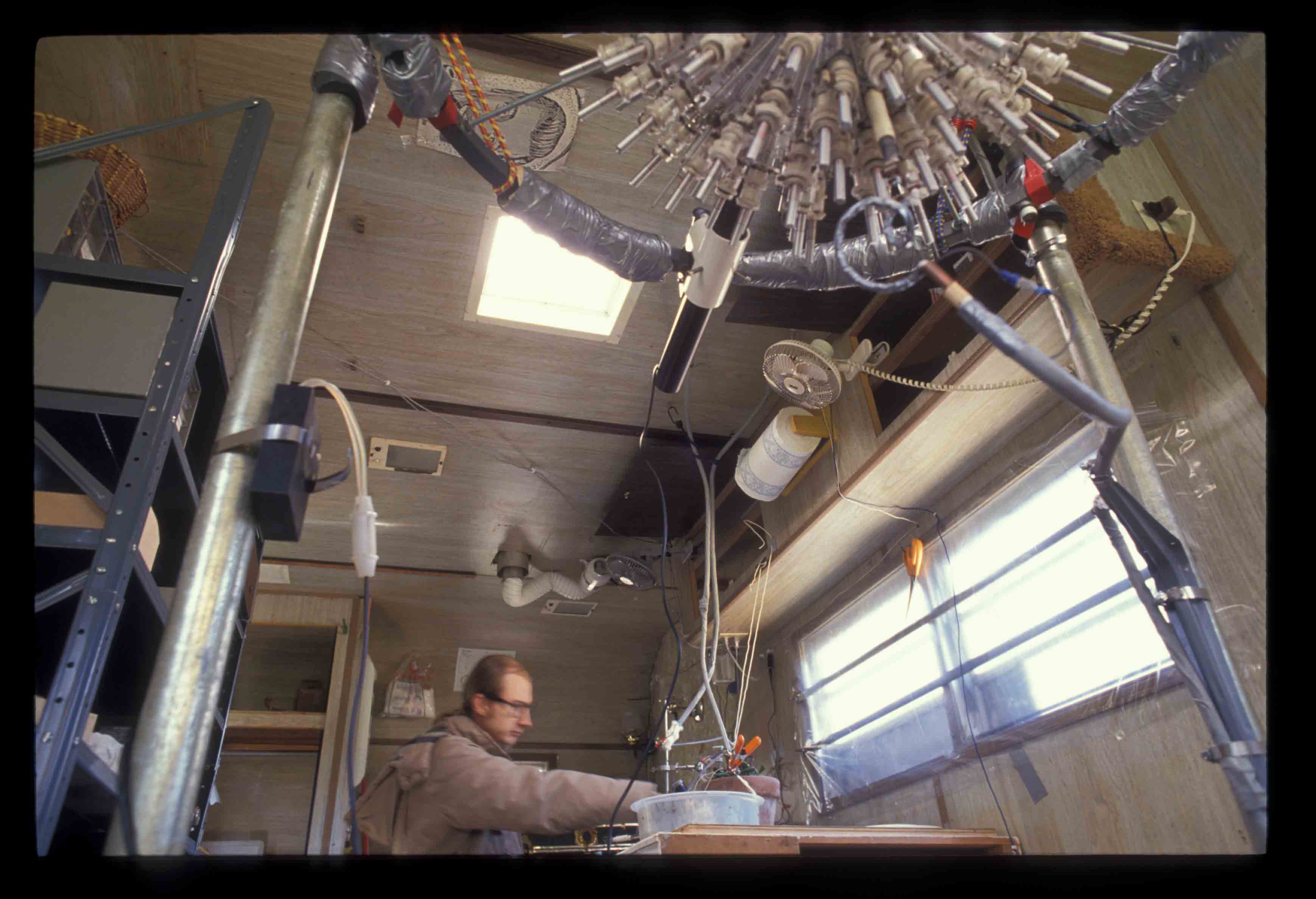

Clearing the inside of a camping trailer in Denton TX to fit much of the project inside prior to move to NM, summer '86 |
 |
|
'85 in Denton TX; first of three constructions of an orgone box, equilateral octahedron 8' on a side, 72 metal layers, 2 layers of newsprint between each, 1400 lbs in final version; antenna went along one axis |
 |
|
Me with friends in Denton helping with the move to NM, October '86 |
 |
|
Dan Canales in Denton, summer '86 with the first assembly of the orgone box |
 |
|

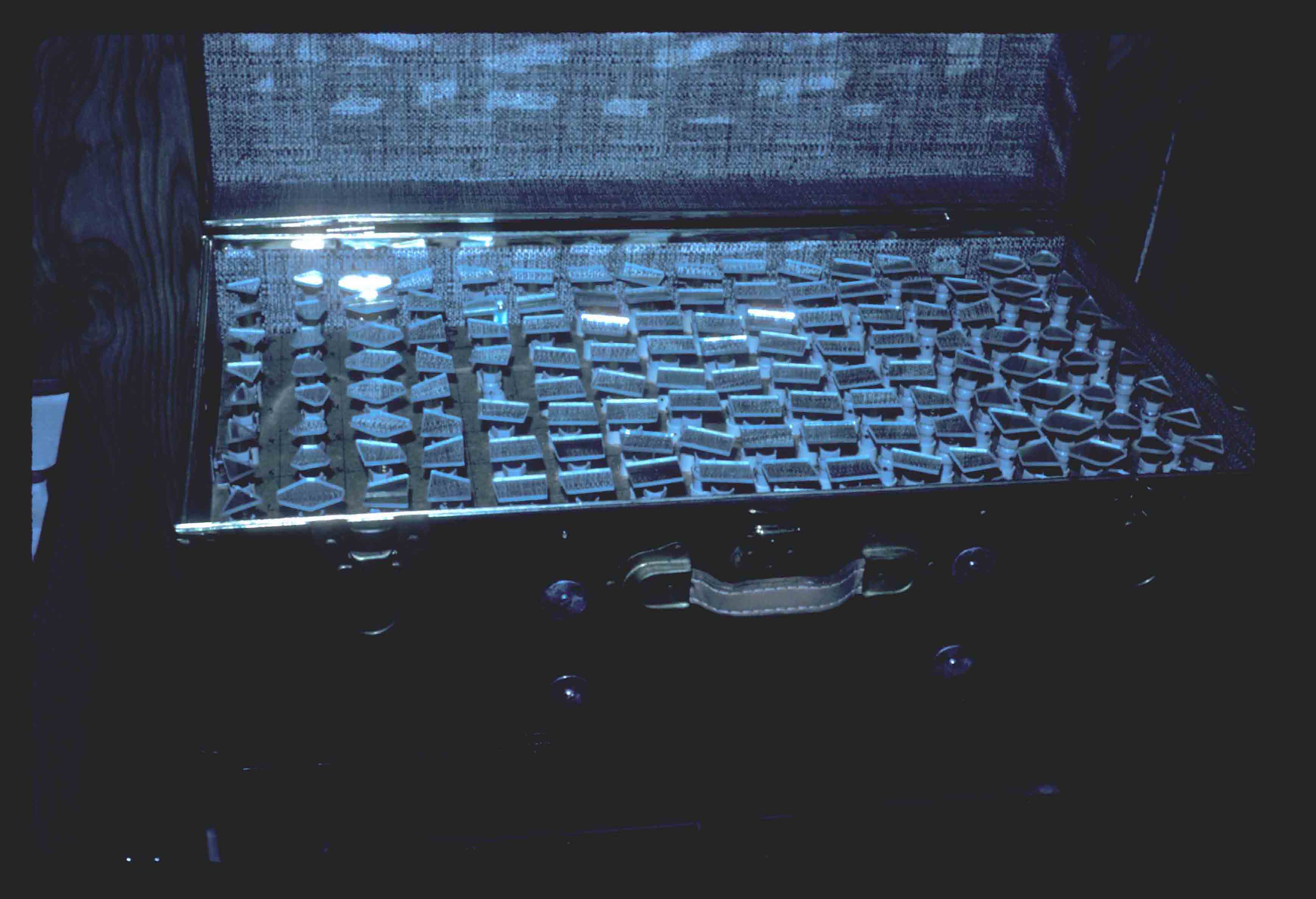

First of several sets of 144 mirrors (each set had large and small versions); these are cut flat mirrors. Another set was first surface platinum on plate glass. |
 |
|

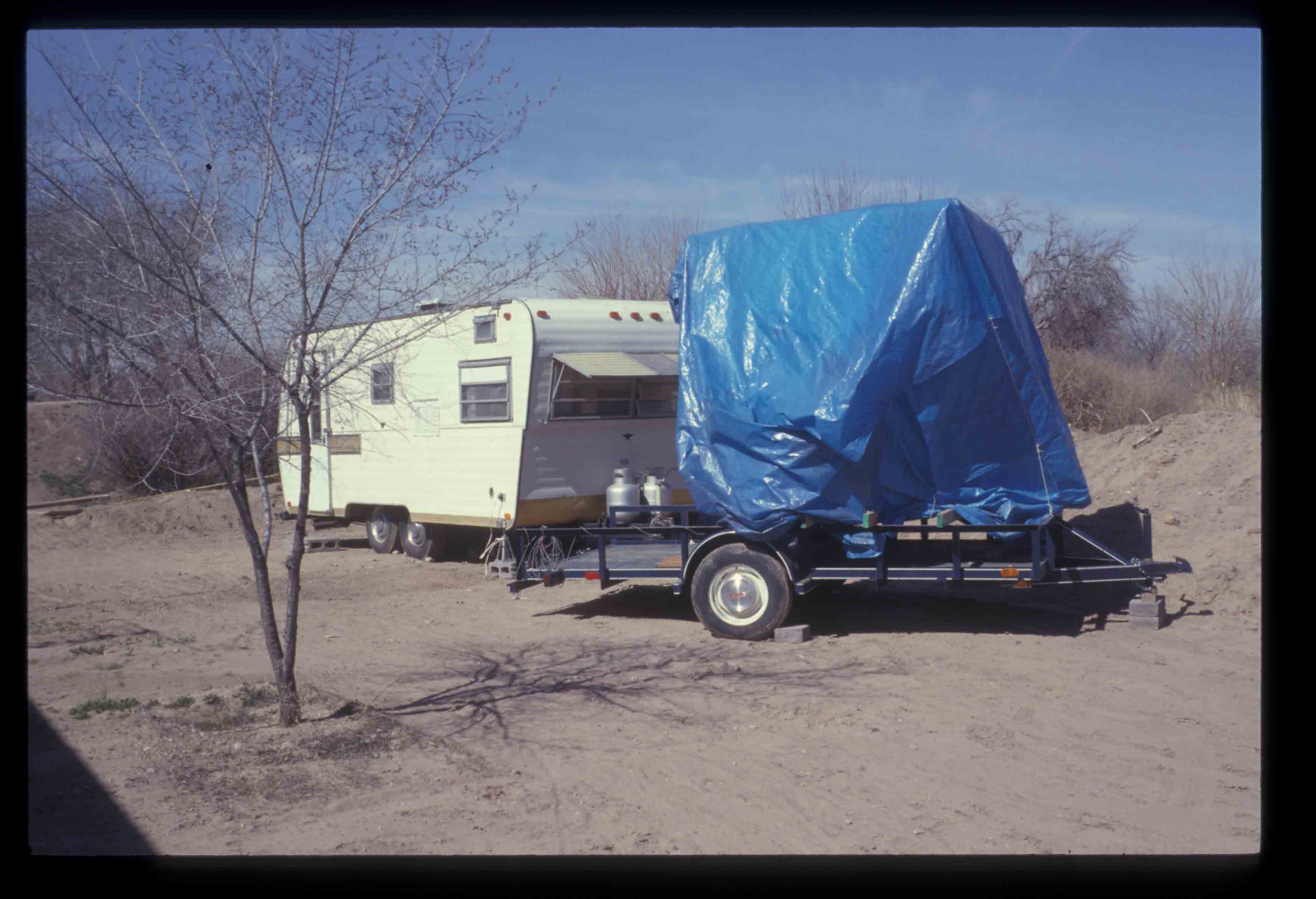

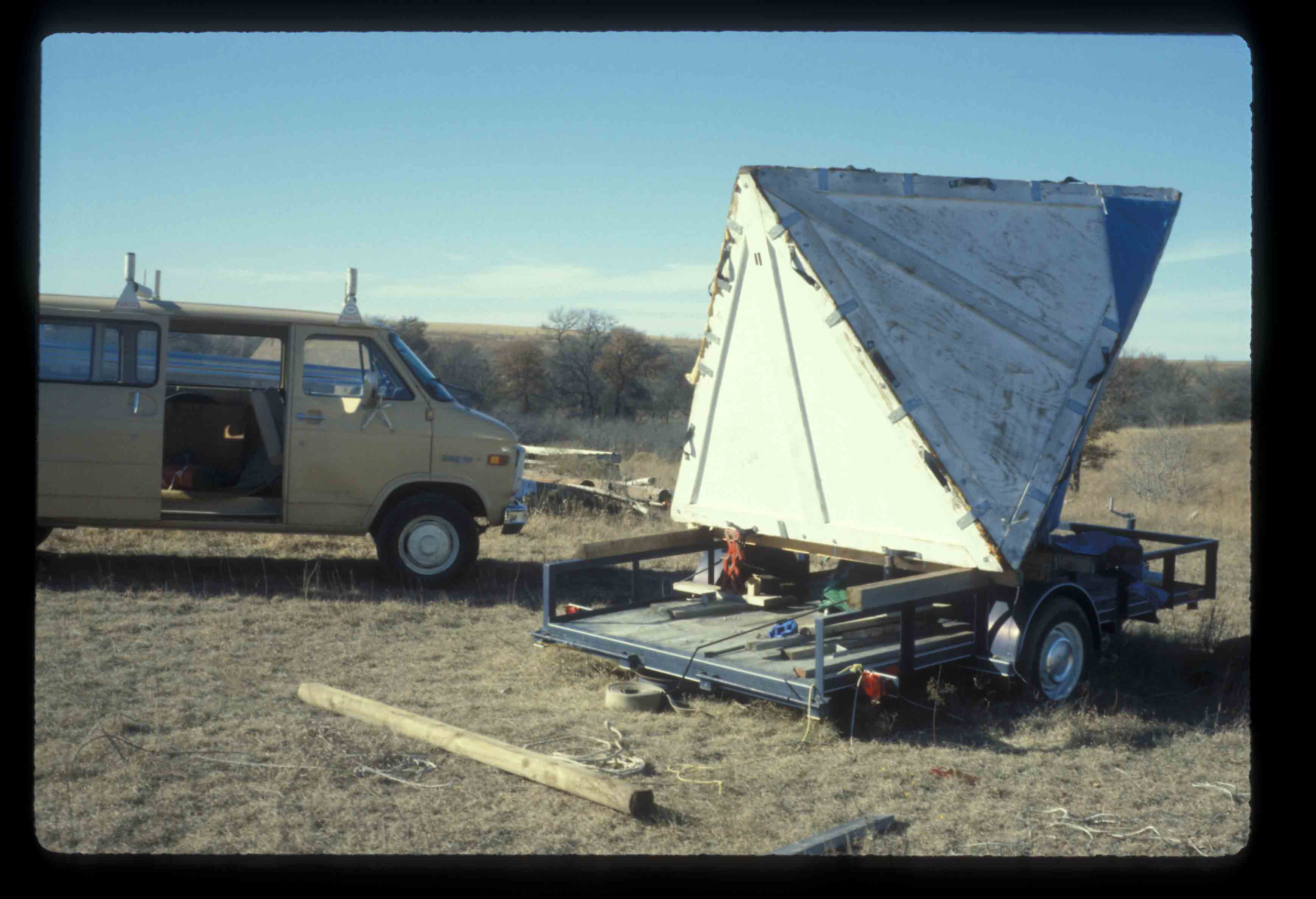

Assembled box on flat-bed trailer with the camping trailer parked in a slum in Las Cruces NM, 1986-7 |
 |
|

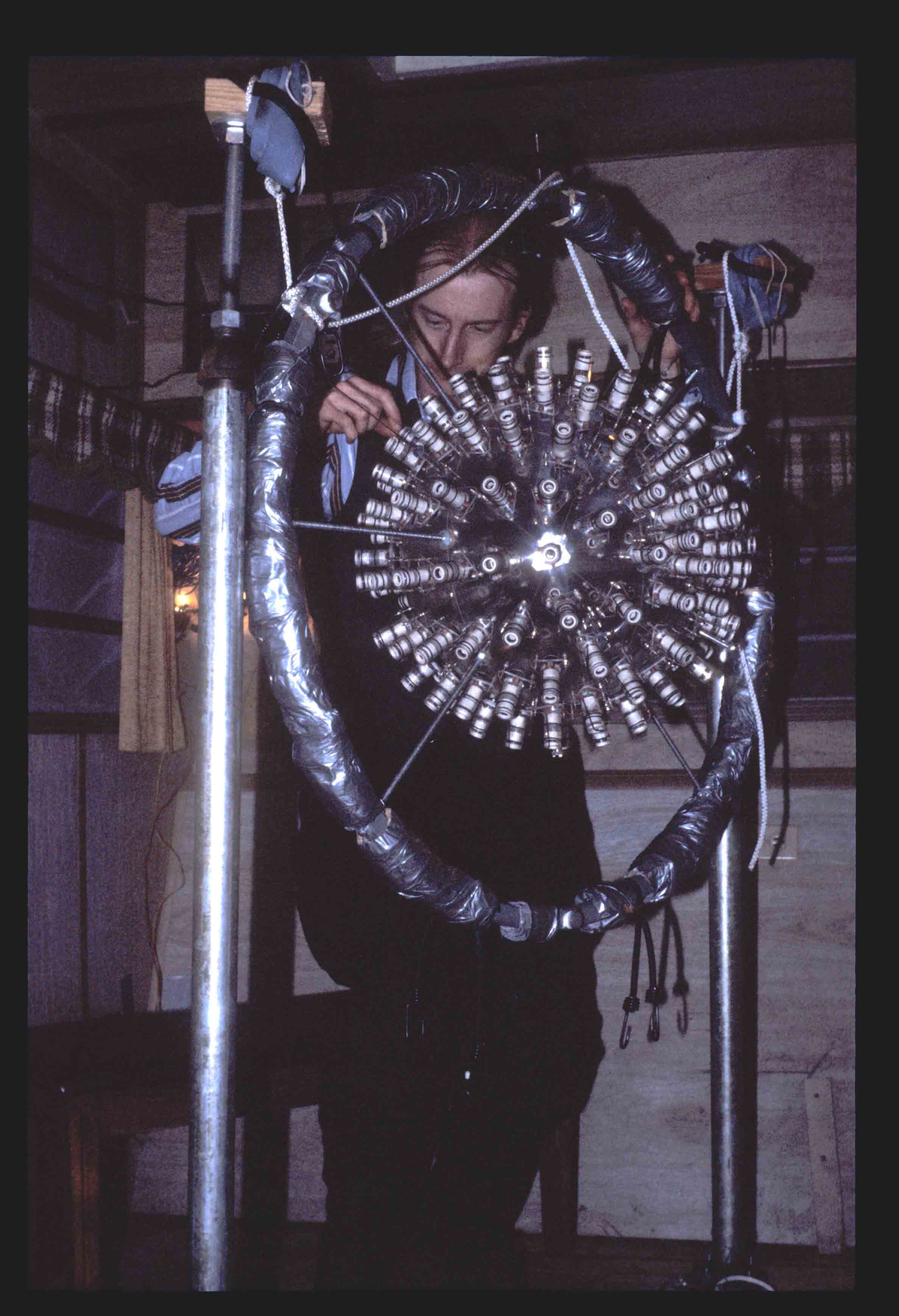

Ball mounted vibration-free through floor of trailer in NM, '87 |
 |
|
Box stored a few months during my move to NC, '87; rain damaged, had to remake all the layers |
 |
|

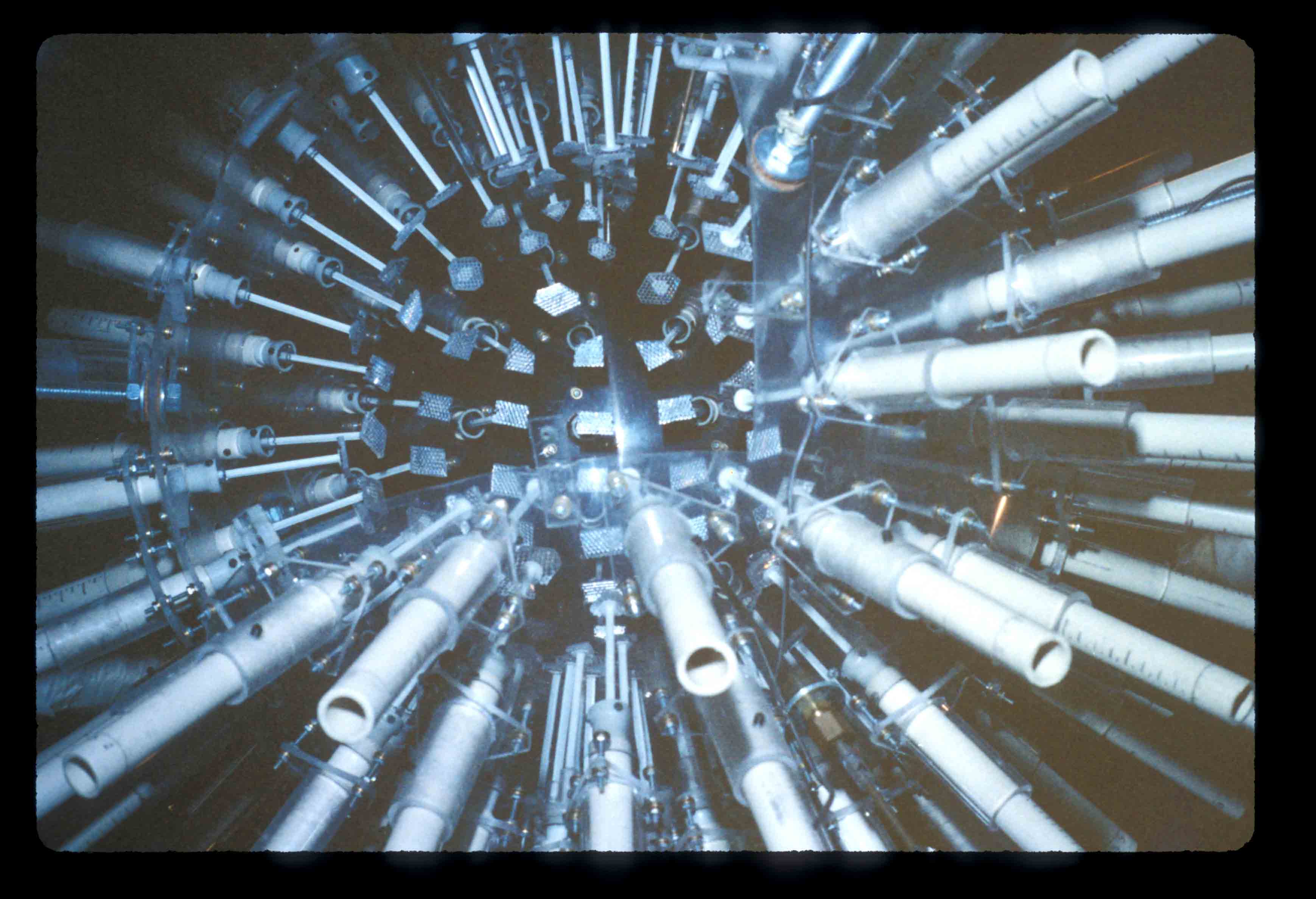

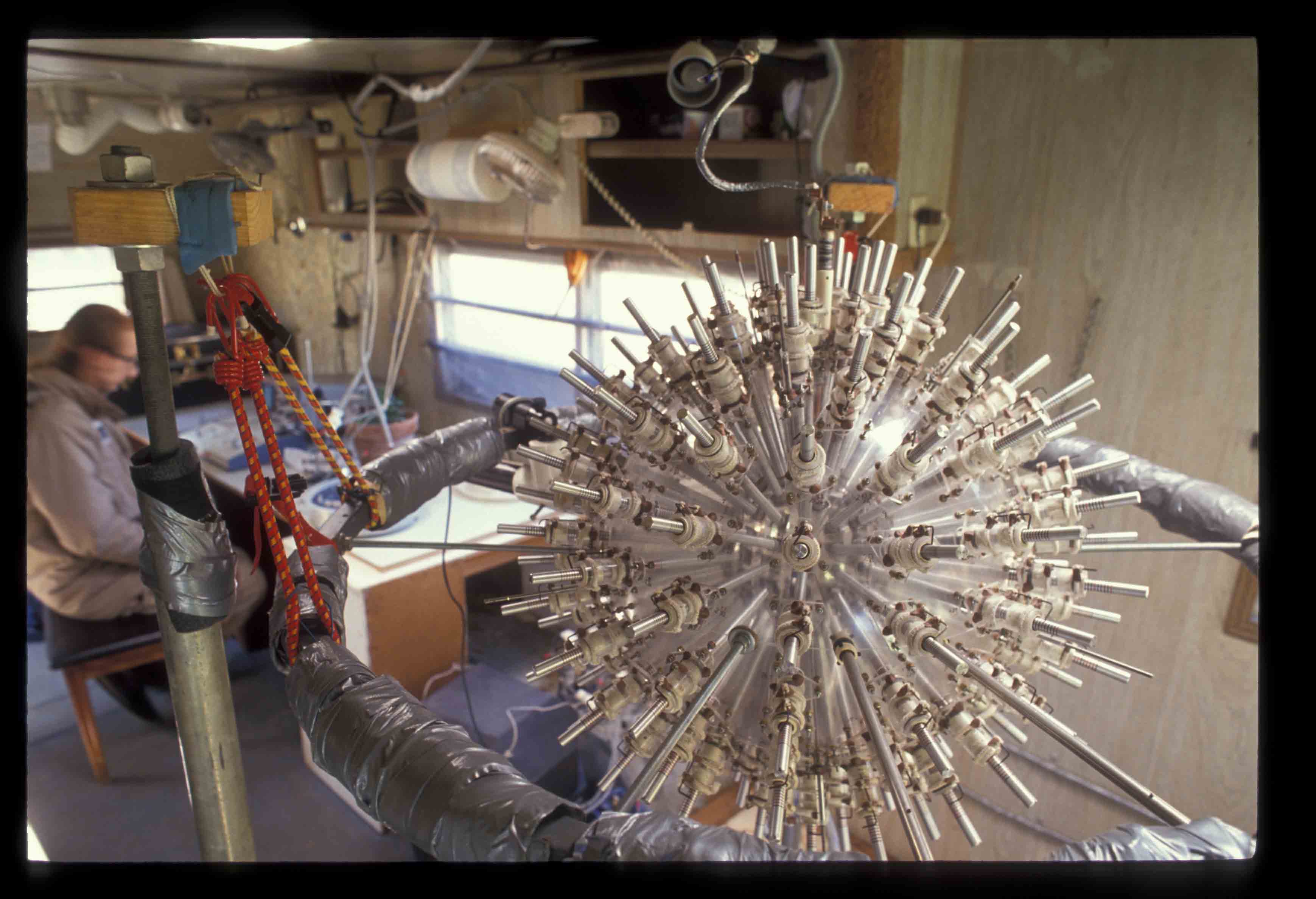

Ball with plastic retroreflector arrays; too cheap, didn't work |
 |
|

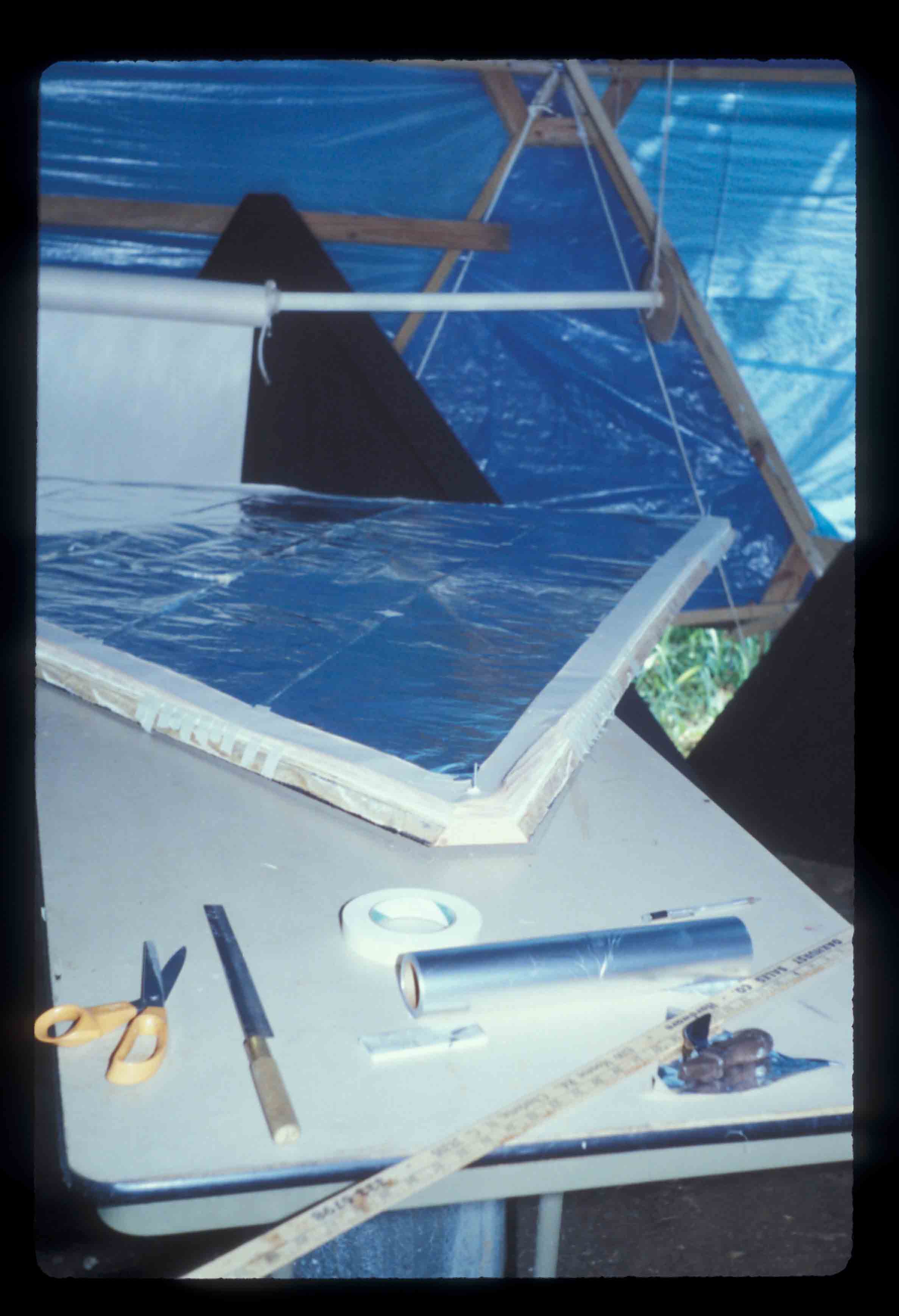

Relayering the right way now in Cleveland NC, 1988 |
 |
|

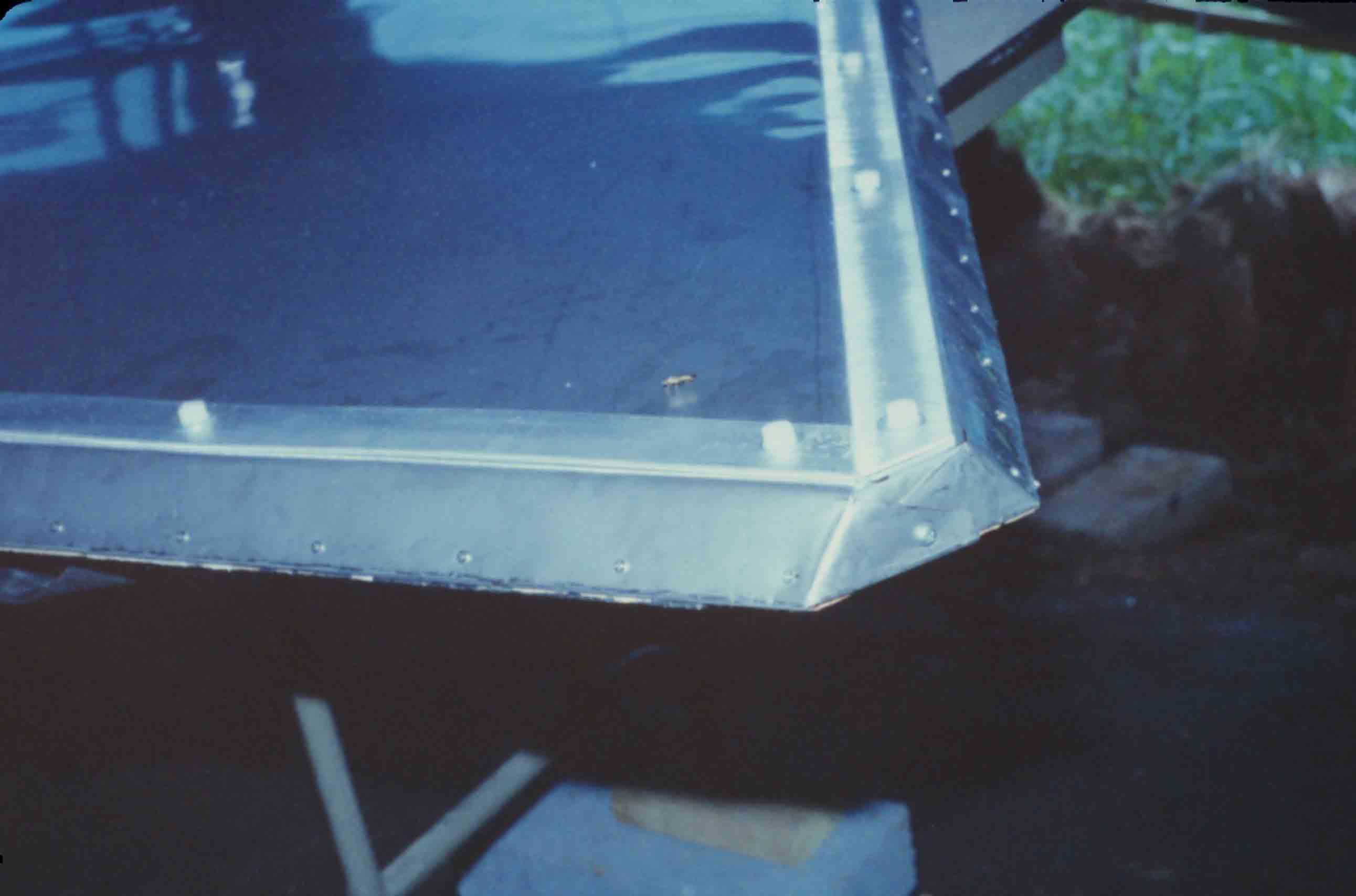

Inner layer of box now sheet stainless steel |
 |
|
Reassembly of orgone box in its new dome, Cleveland NC 1989 |
 |
|

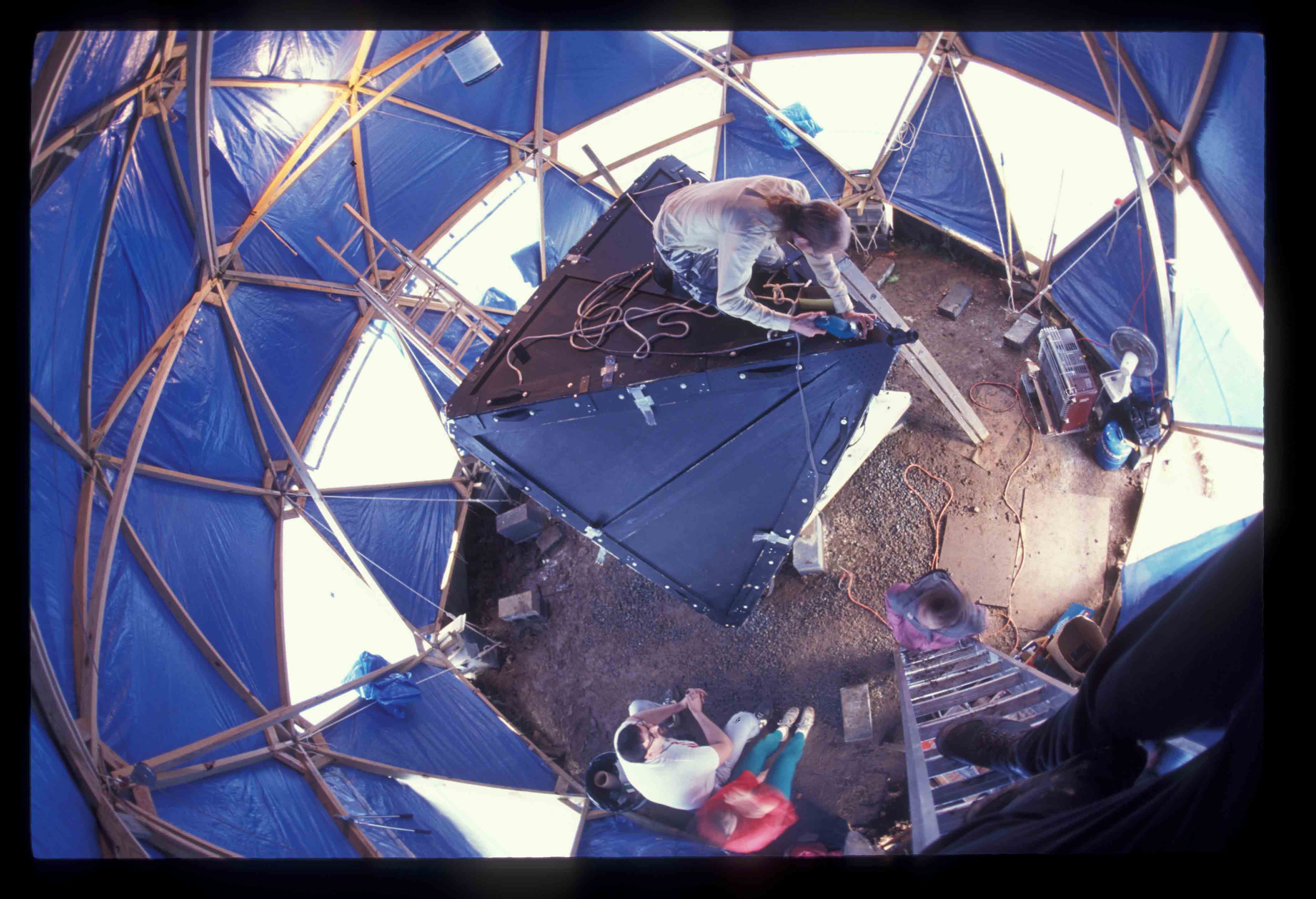

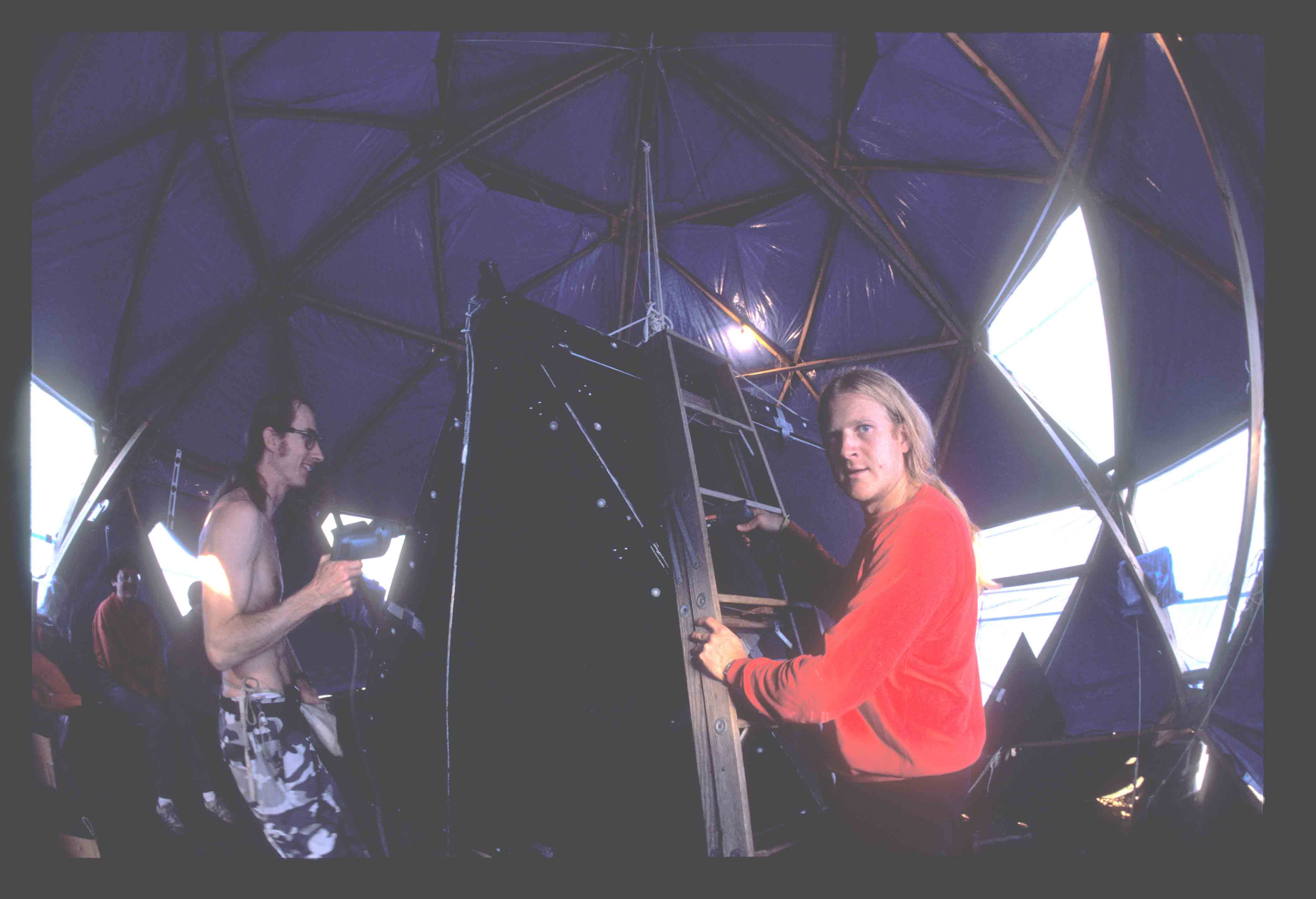

Assembly of orgone box in dome |
 |
|

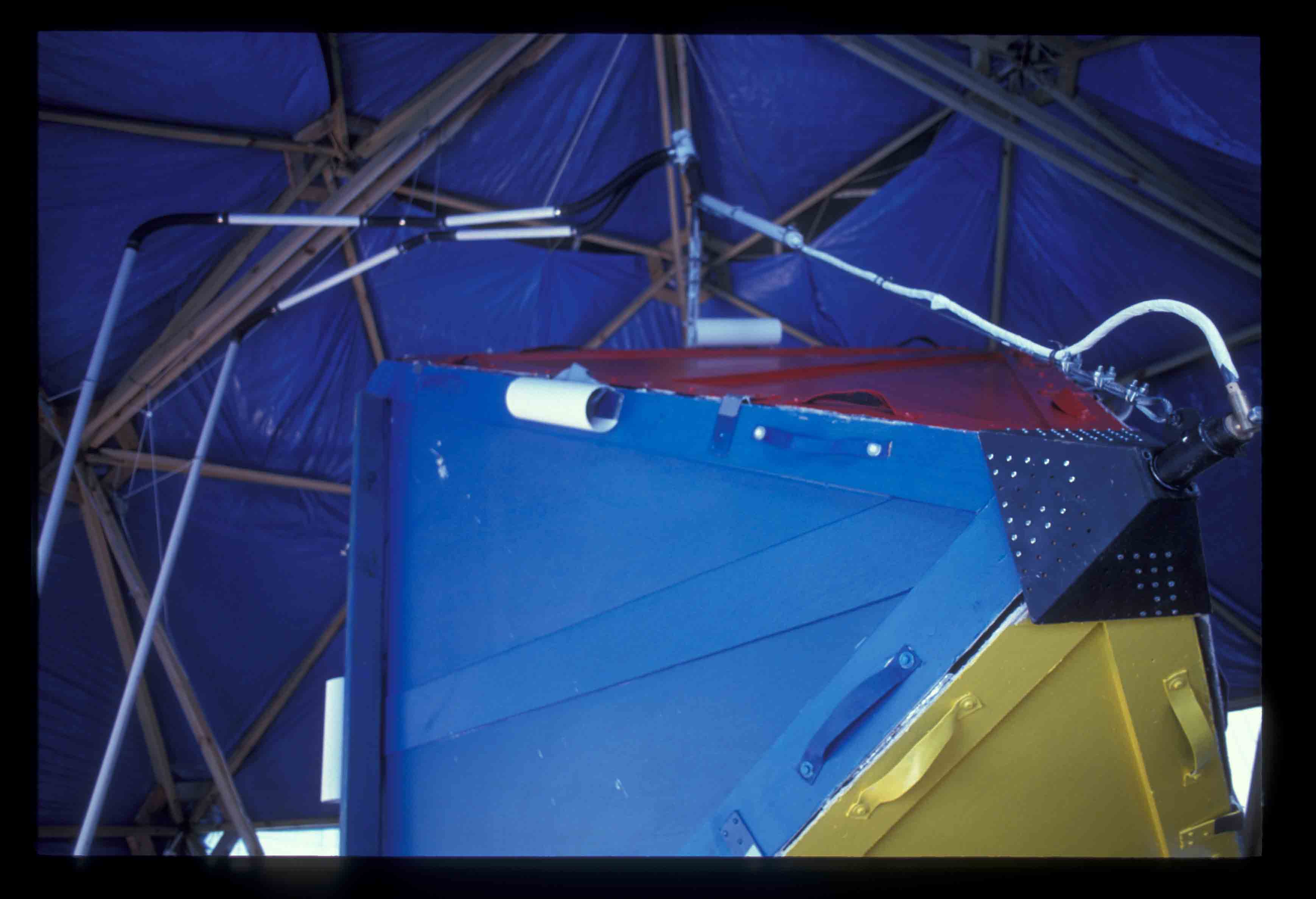

Final mounting of box; rotates on mounts on opposite verticies, hangs from top of dome on cables, can point in any direction |
 |
|

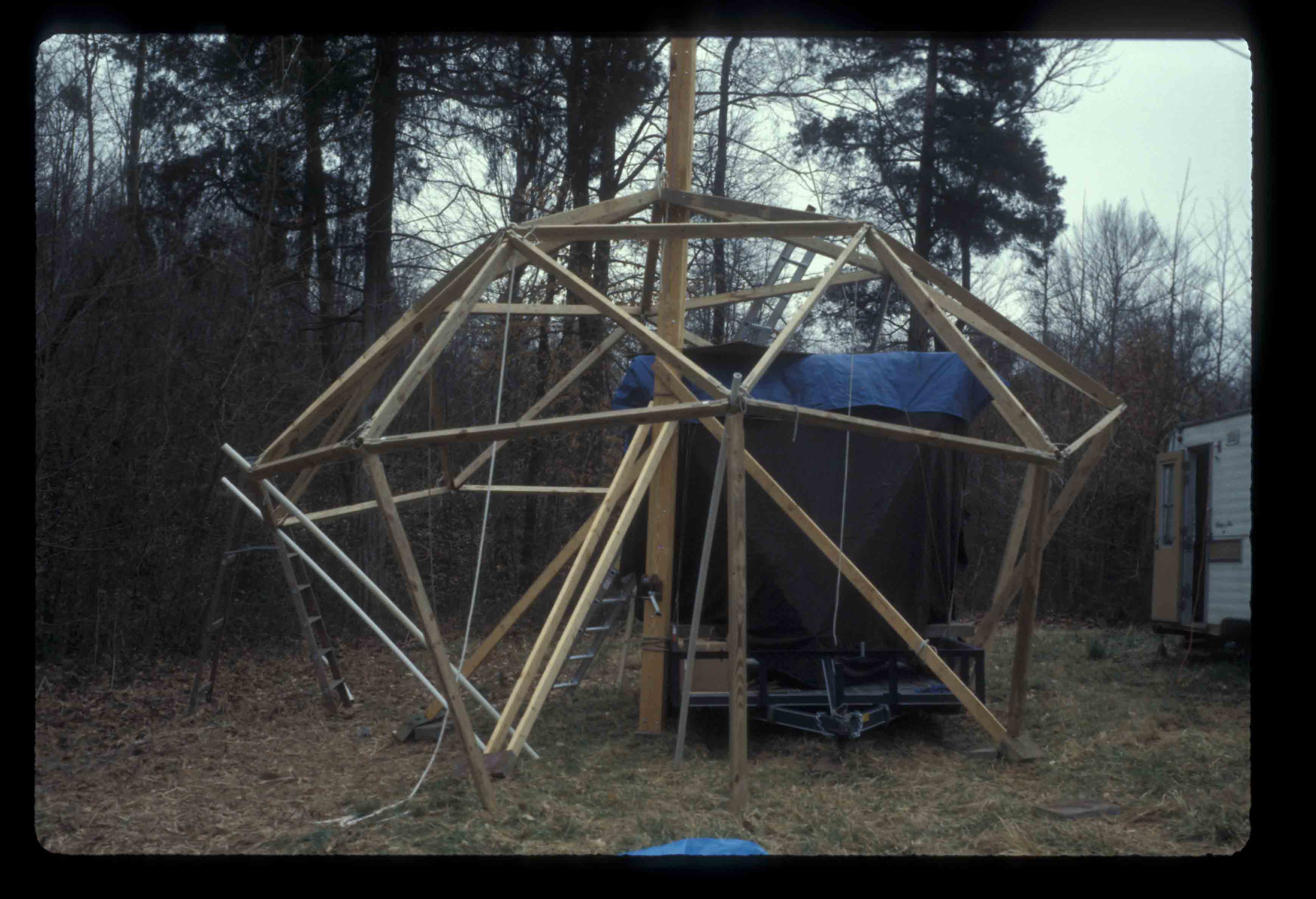

Beginning of geodesic frame for dome; winched up central pole and built from top down (by myself!) |
 |
|

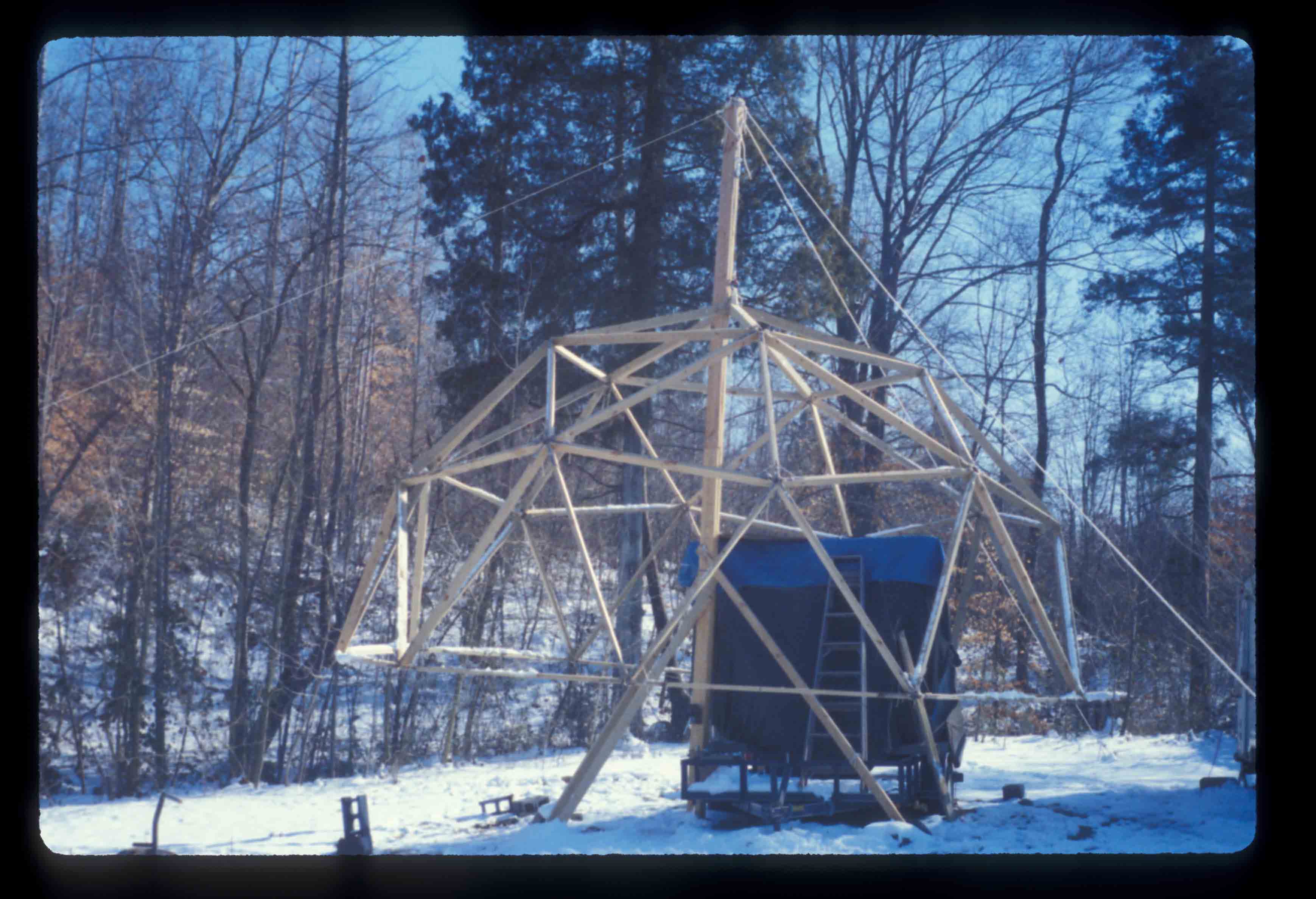

Progress on dome, winter '89 |
 |
|
Progress on frame. Then had to figure out a foundation! |
 |
|

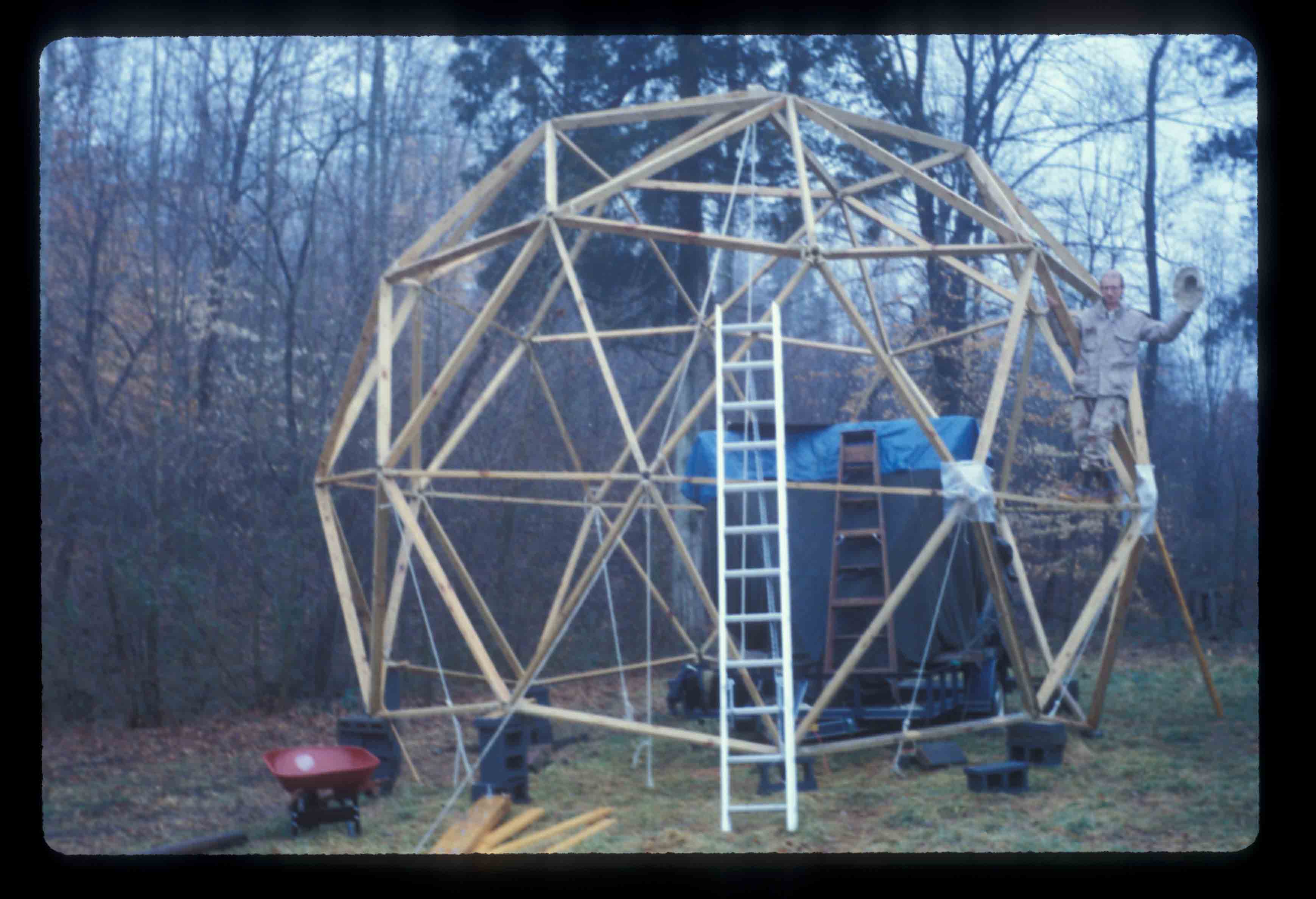

Scrambling around on the frame |
 |
|

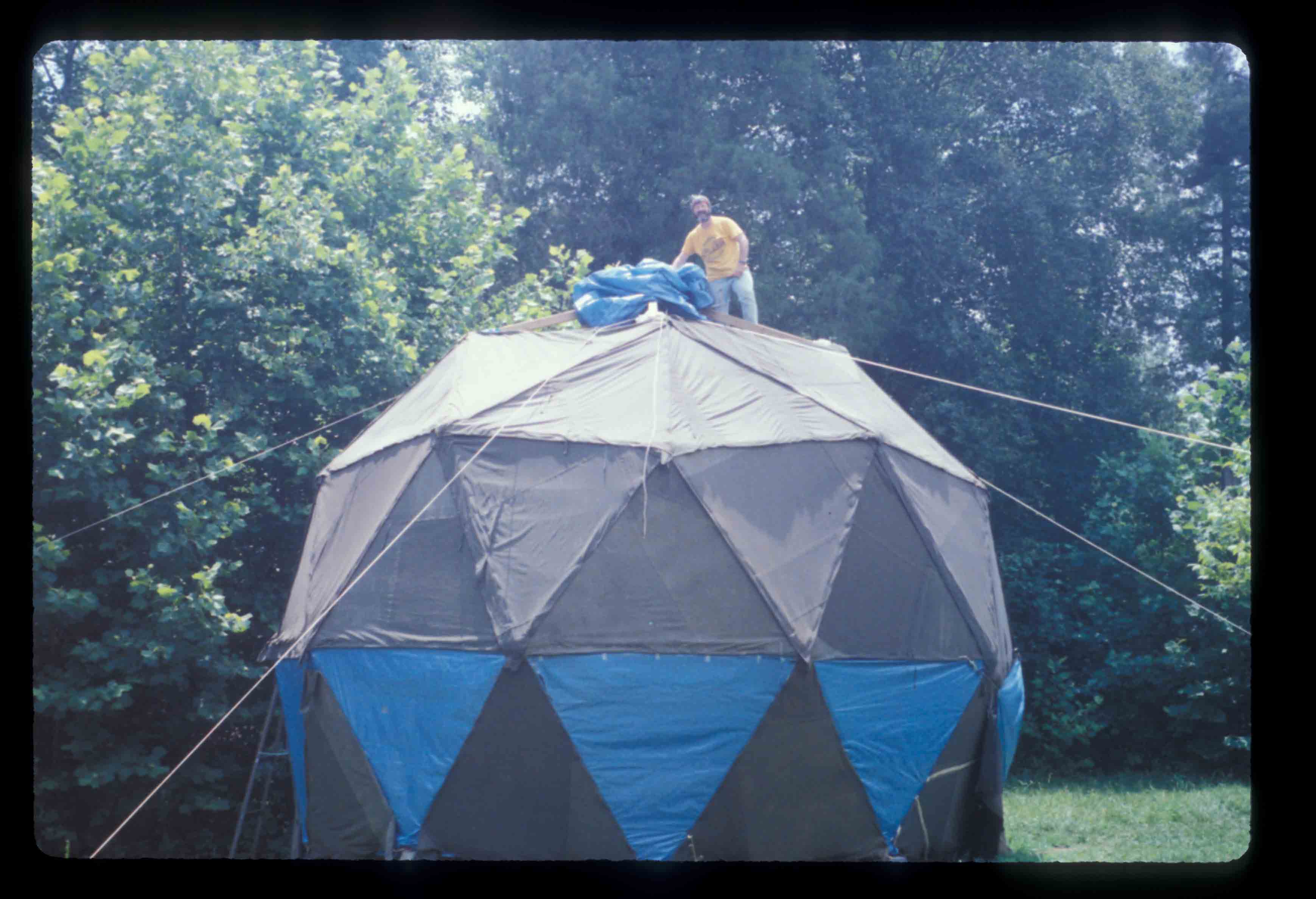

Jeff Ayers helping cover the dome |
 |
|

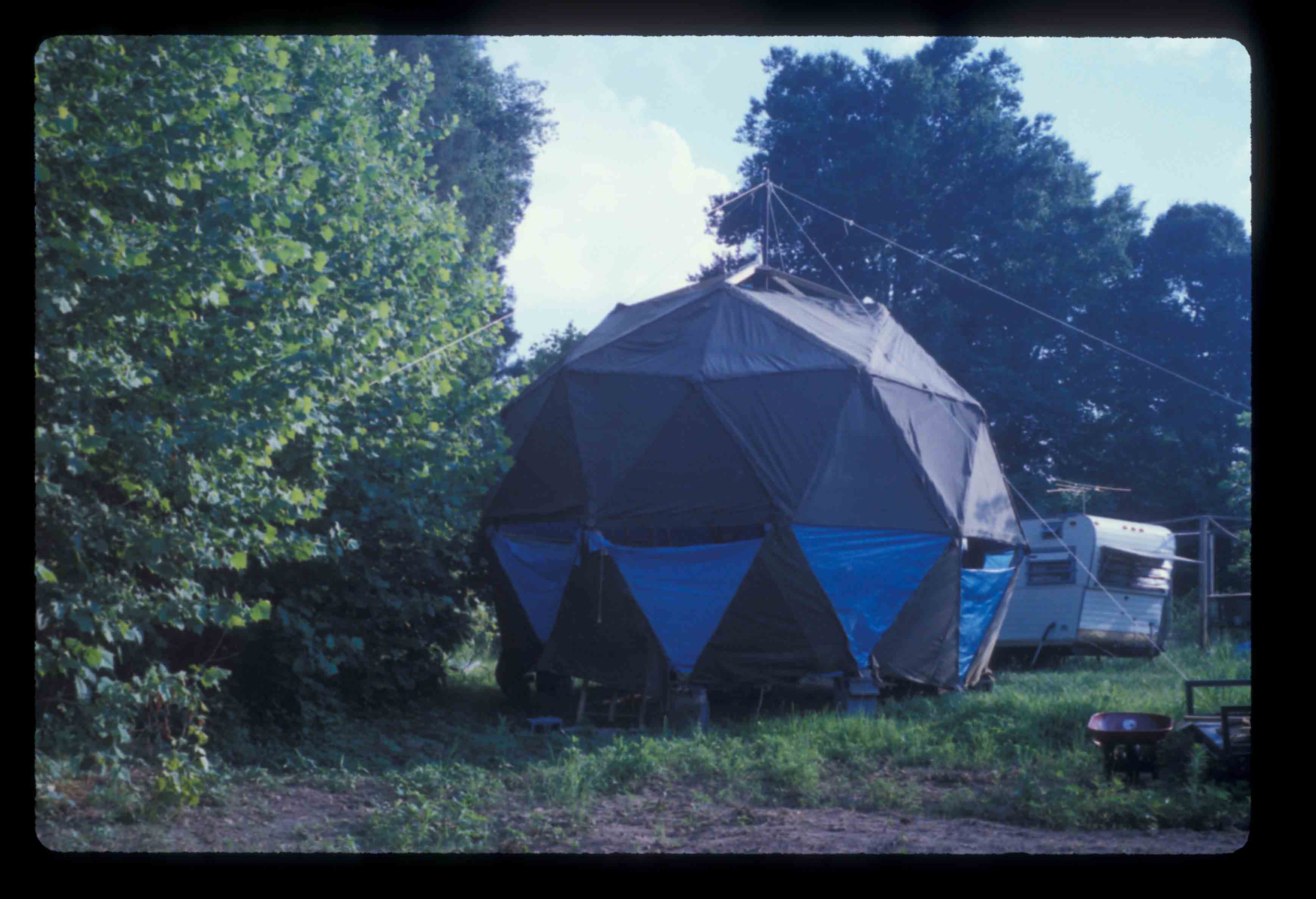

Completed dome with trailer behind |
 |
|
Final configuration of optical resonator; aluminum rods, platinum mirrors, quartz mounted on tapered copper rods |
 |
|
Laser spot on crystal, close up |
 |
|
April 1990, full test....nothing happened. |
 |
|
Full test 1990 |
 |
|
Full test 1990 |
