Changes, refinements, more tests. No ball lightning yet but still have a few steps to go before good experiments are possible (proper timing with the sparker etc.). Recently started trying a 2 liter round bottom flask to contain the sparker explosion. Also tried a bit of fine steel wool (shown below) but that didn't work, not long enough a pulse of microwaves. Next will try some carbon veil (non-woven fine mat of carbon fibers).

    Notice the addition of a grid made mostly of 19 ga. stainless steel wire. This I have charged usually to -2000 V, and sometimes to -6000 V. I have just added a new capacitor bank and will finalize that soon which will initially operate at -3000 V. For an explanation of why, see the PowerPoint presentation on the Physics page. It won't make any difference until I can get much lower pressures after the machine shop works on my rig in late January. I've done away with the baffles separating the antennas (despite keeping them as a cool background for this gallery...).

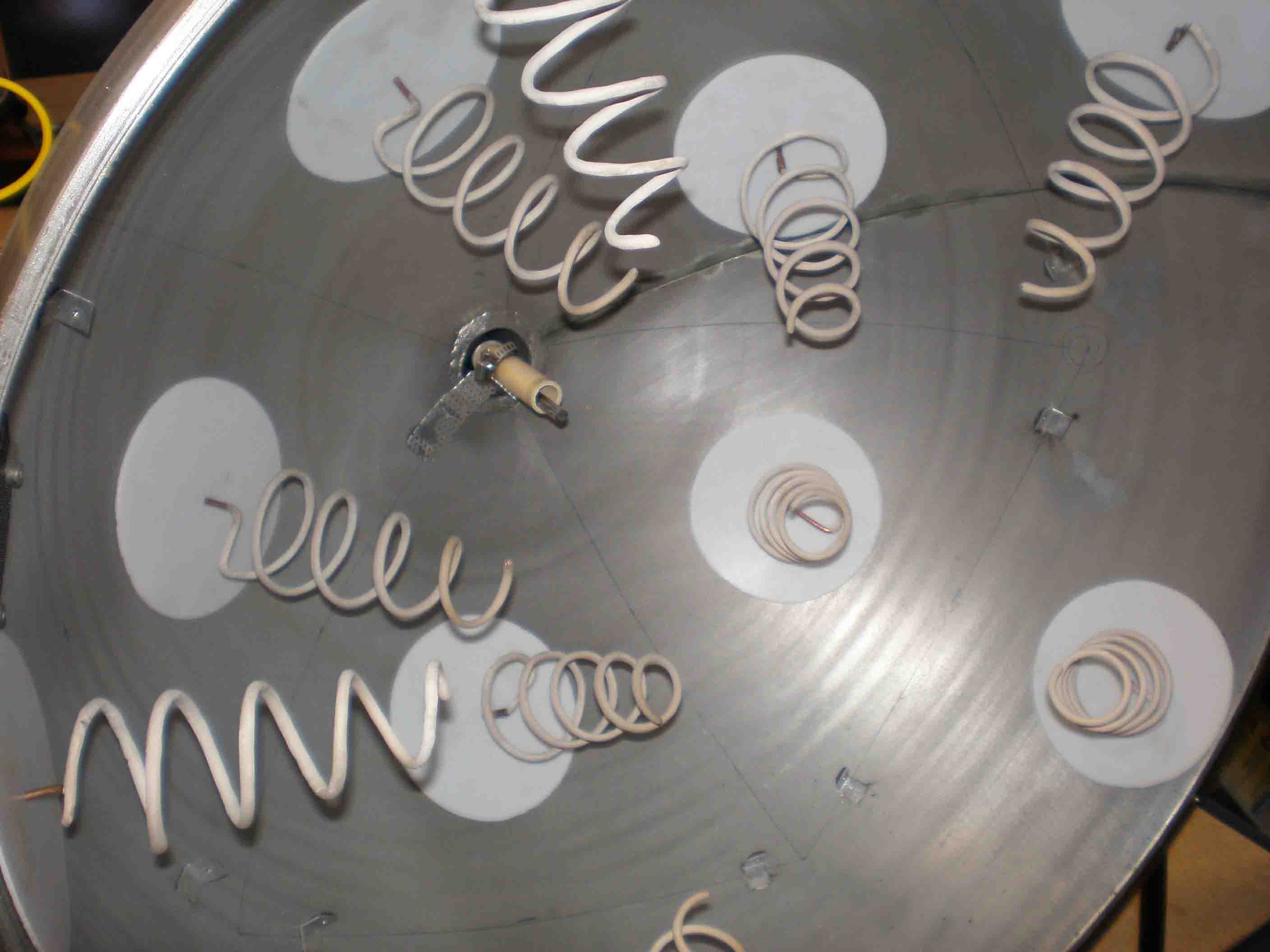

    There were severe problems with microwave leakage until I added aluminum foil around the 20 antenna feedthroughs on the outside of the sphere, as the photos show. There is still some problem with interference with the video but far less than before.

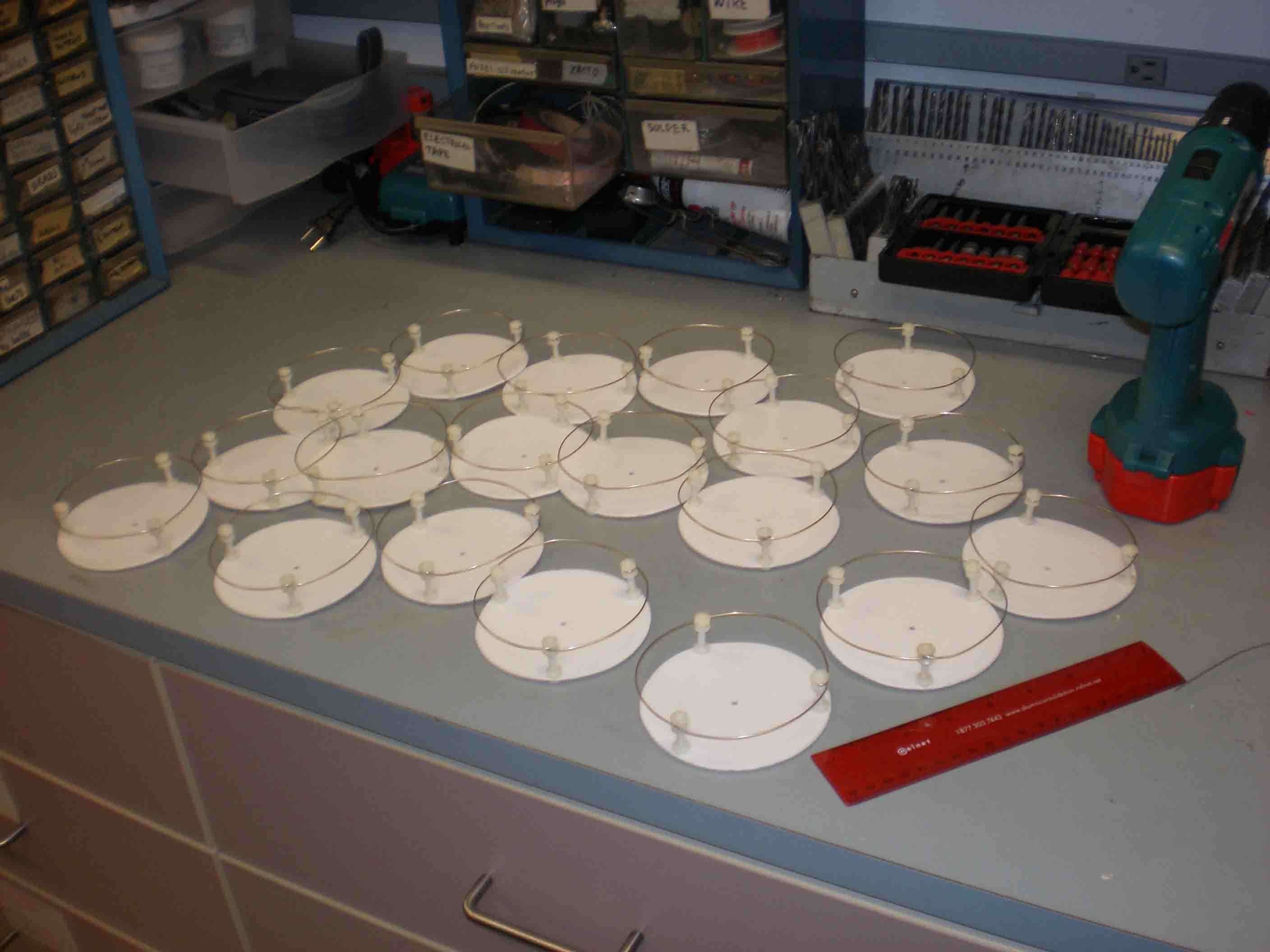

Using teflon disks to prevent breakdown between antenna base and sphere

Teflon disks with nylon bolts holding stainless wire for grid

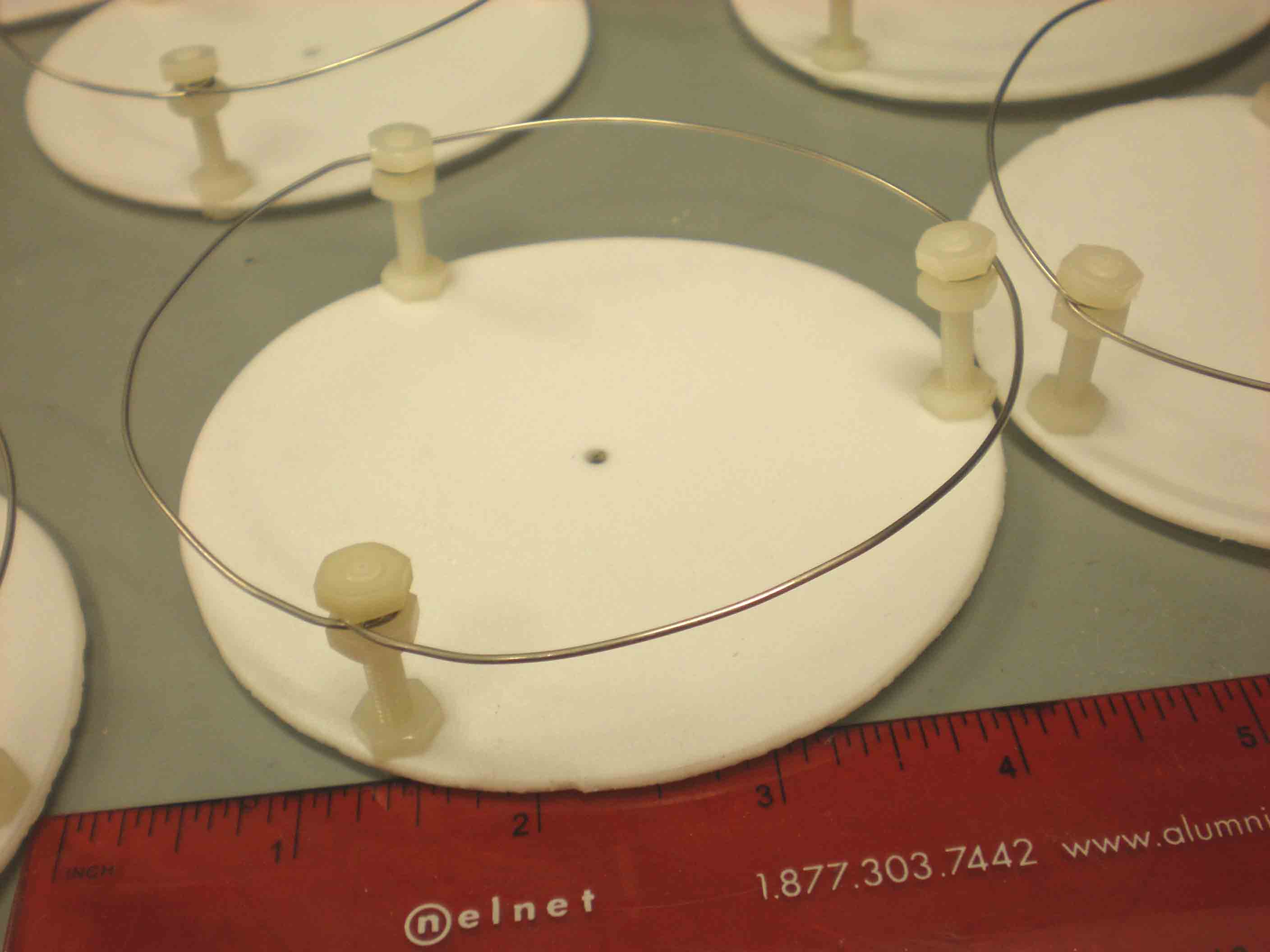

Closeup of teflon disk and grid circle

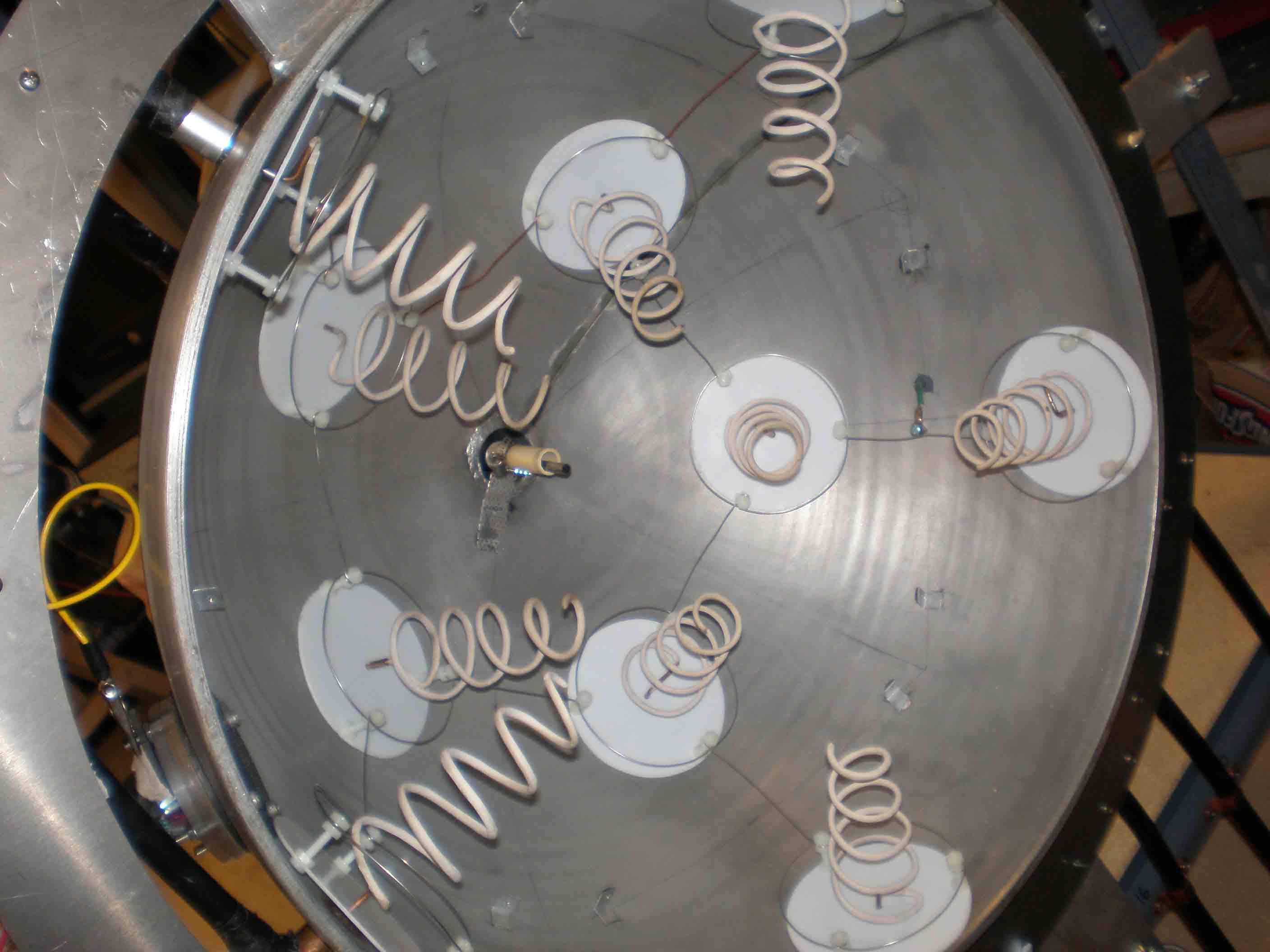

Grid installed

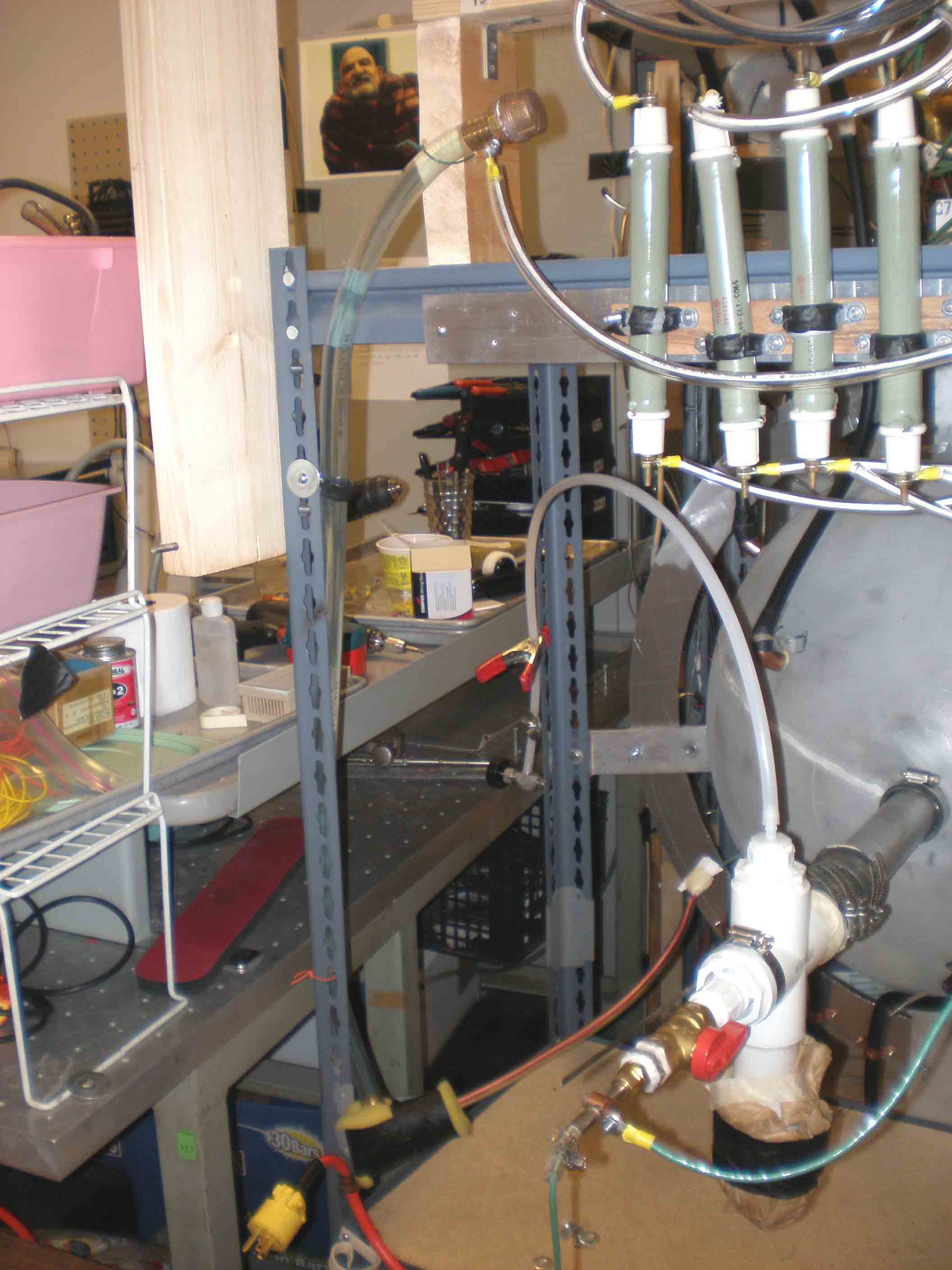

Vertical tube is one of several water resistors; this is for grid power supply

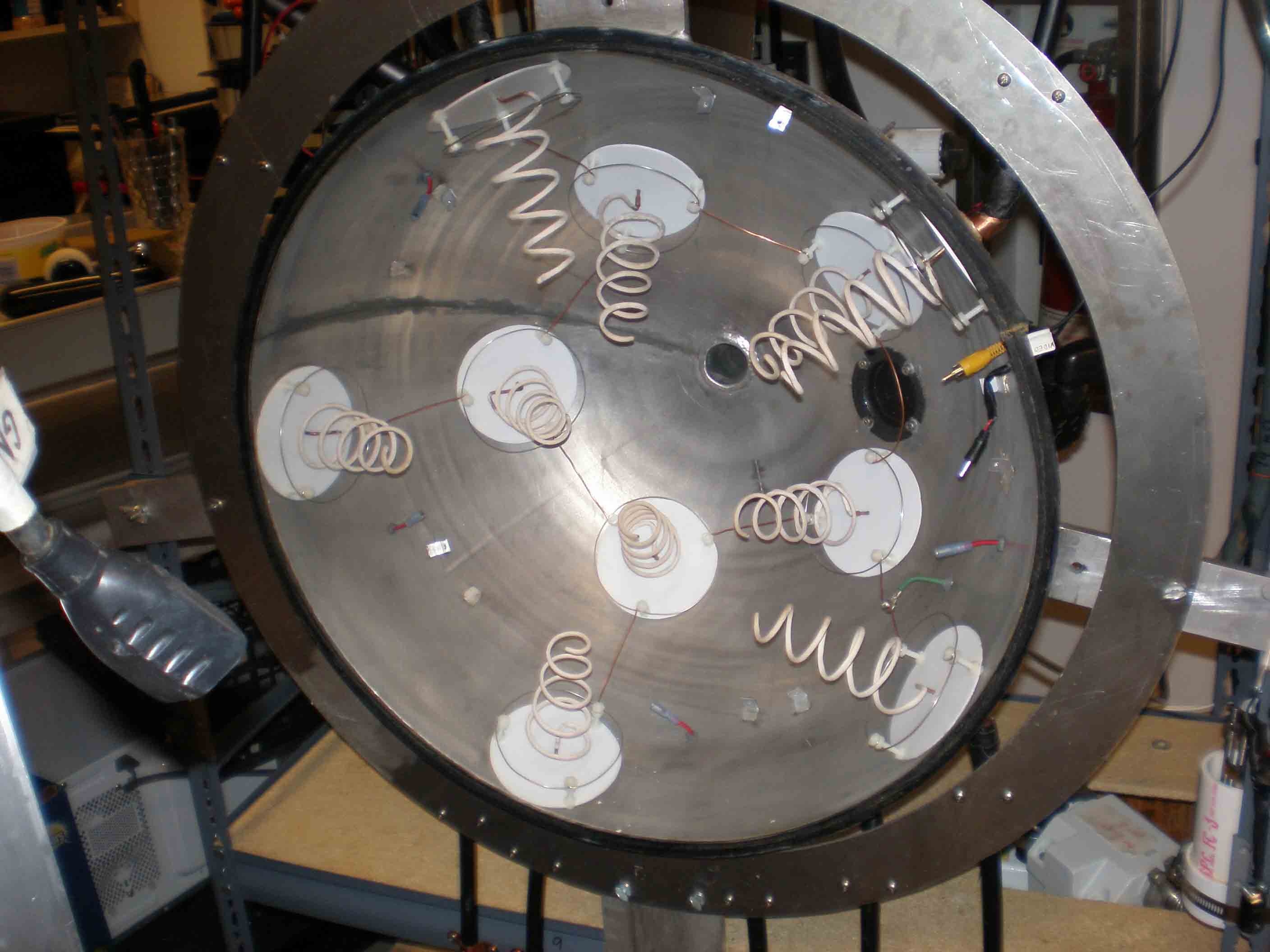

Grid in North hemisphere

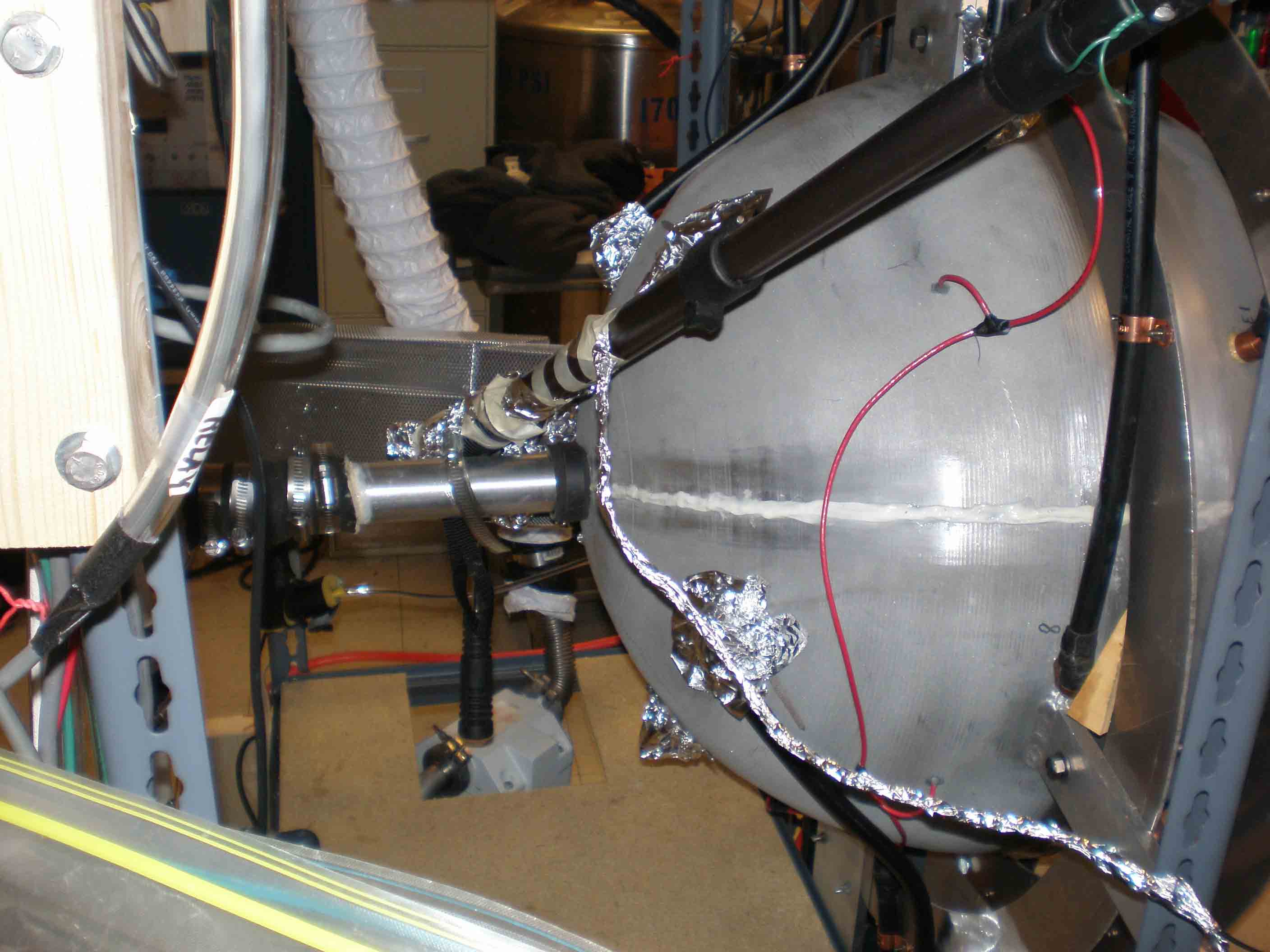

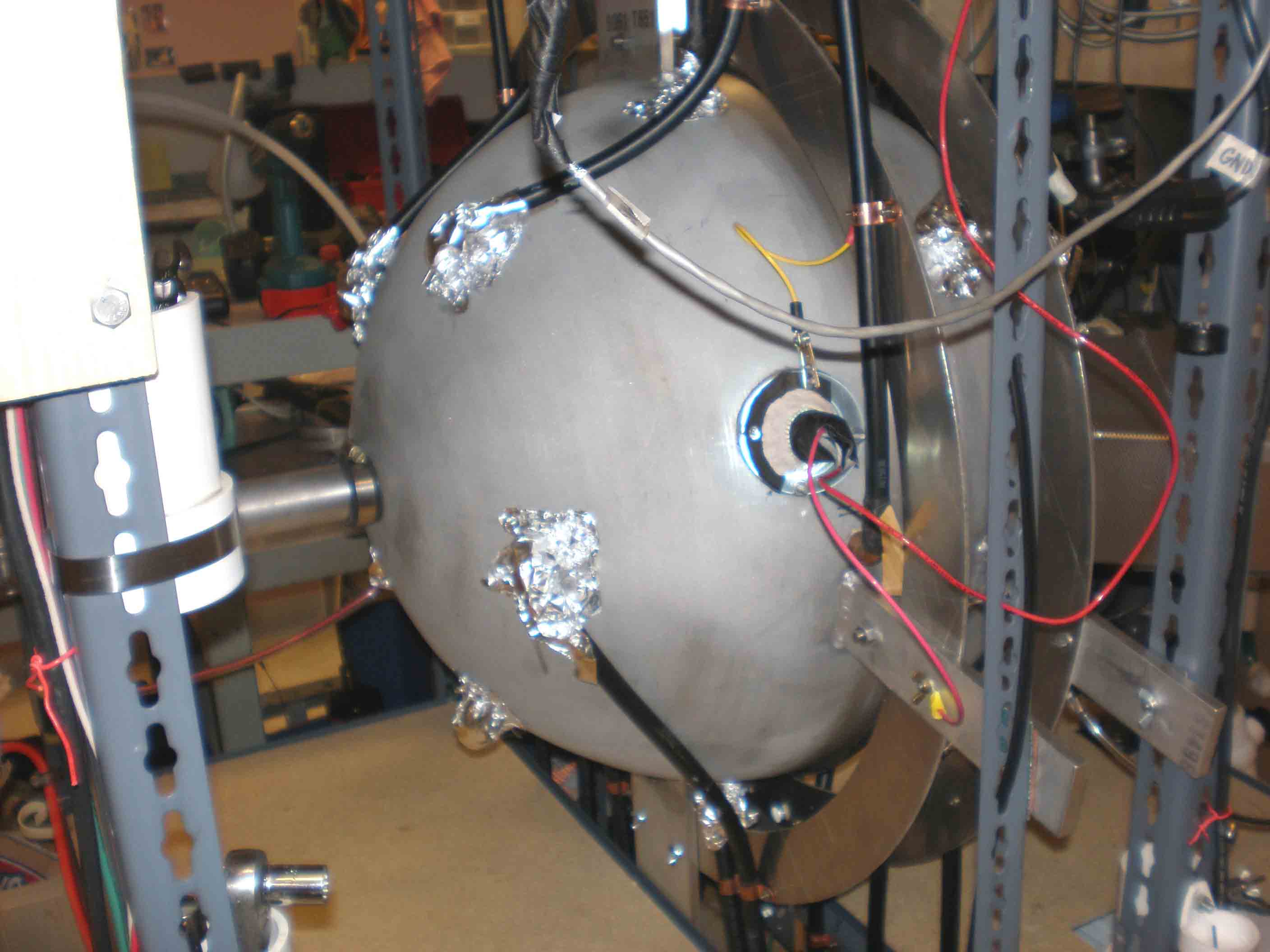

Foil added to protect against microwave leakage, South hemisphere

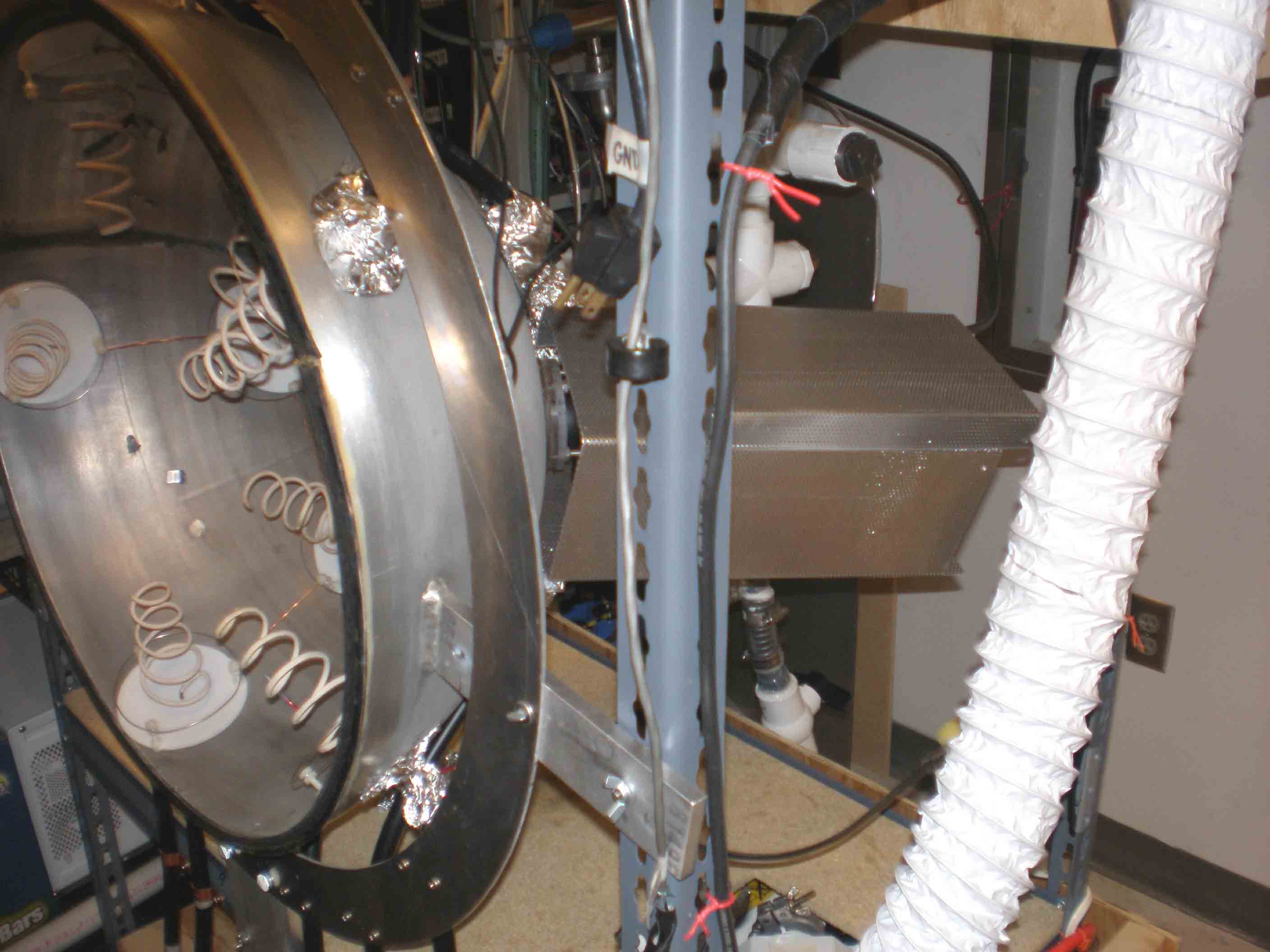

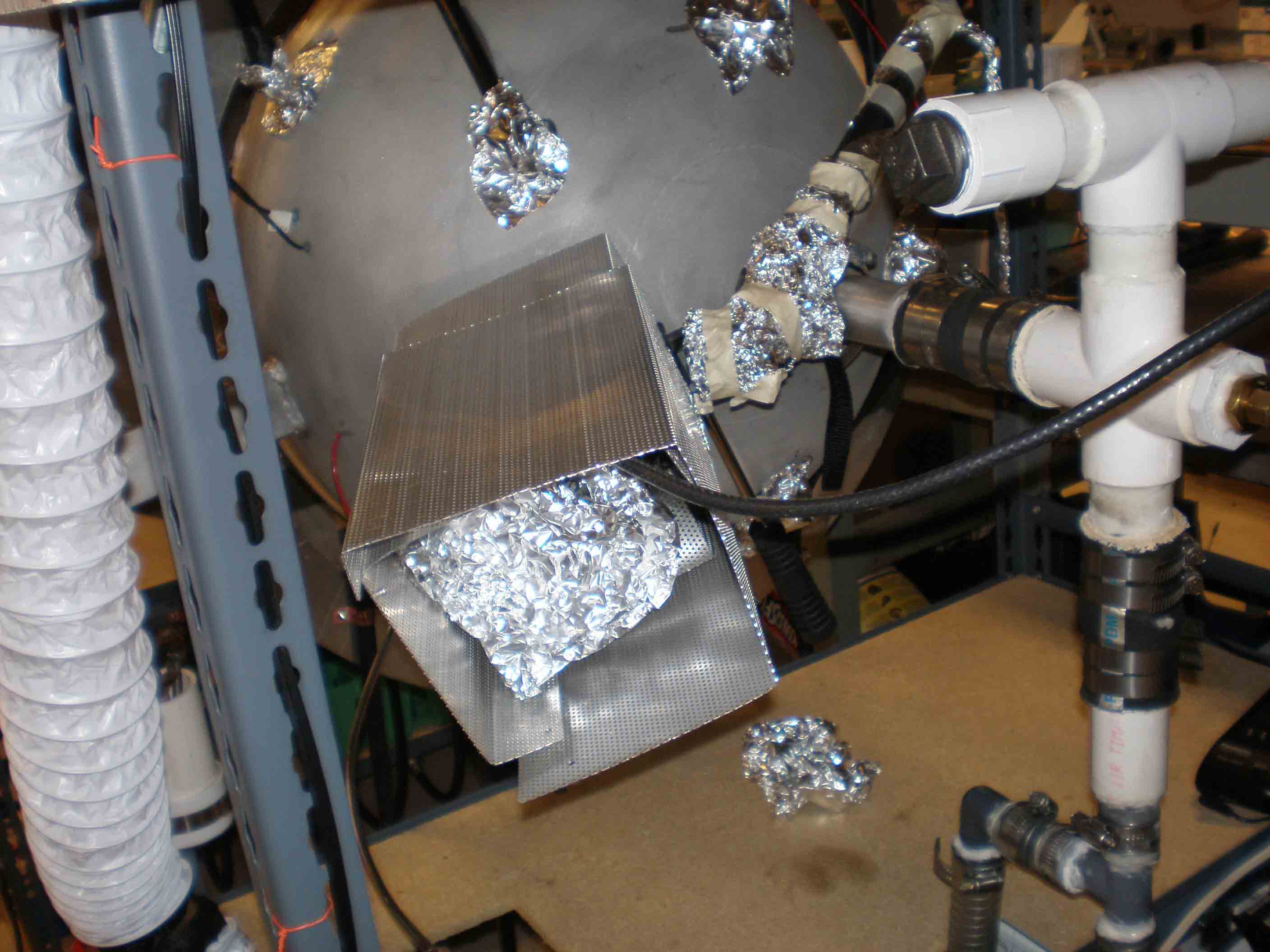

Foil on N hemisphere and faraday cage around video camera

N hemisphere with new shielding

Cage around video camera

Cage around video camera, N hemisphere

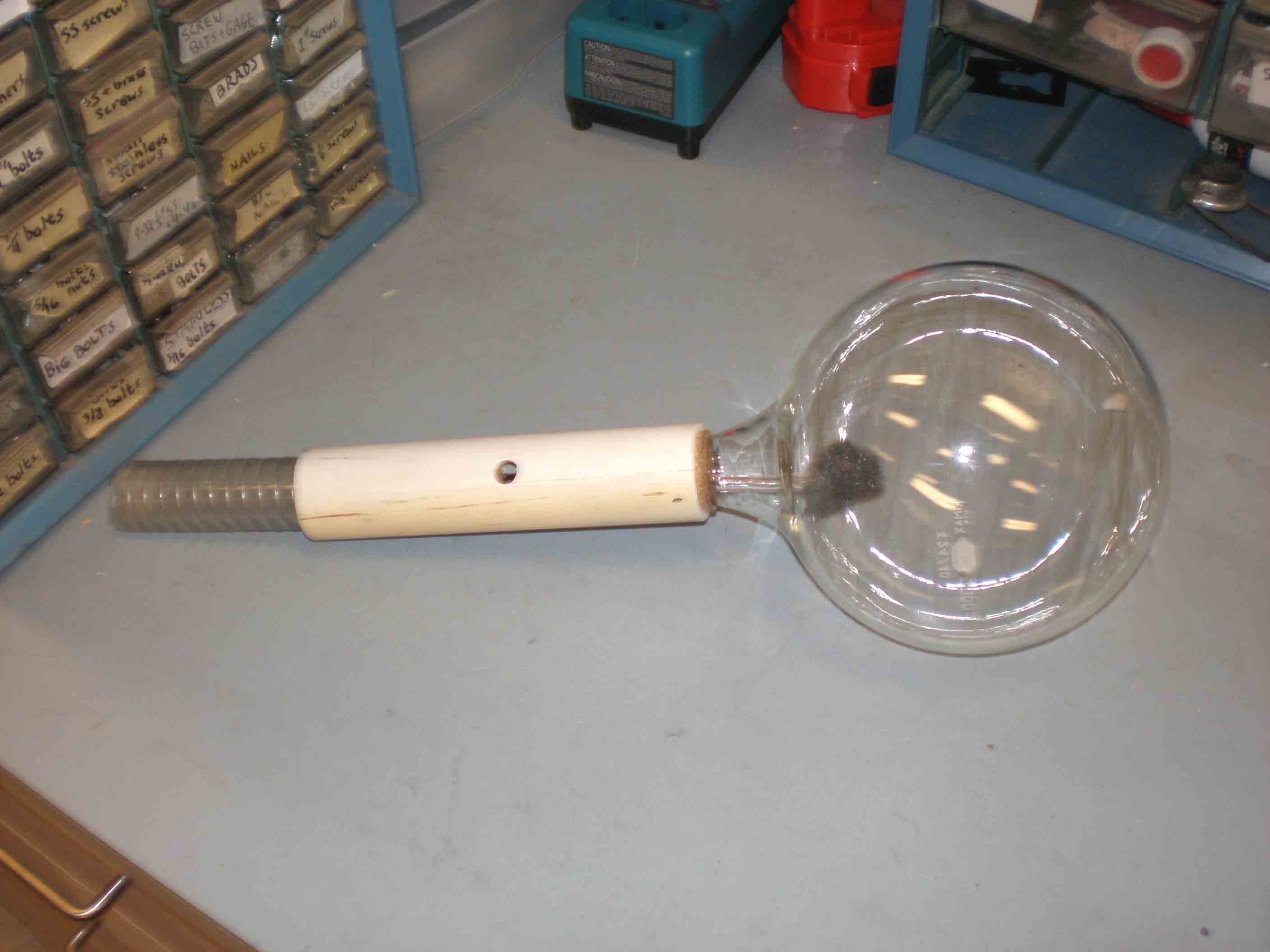

2 liter flask with steel wool and PVC mount (fits in polar pipe)

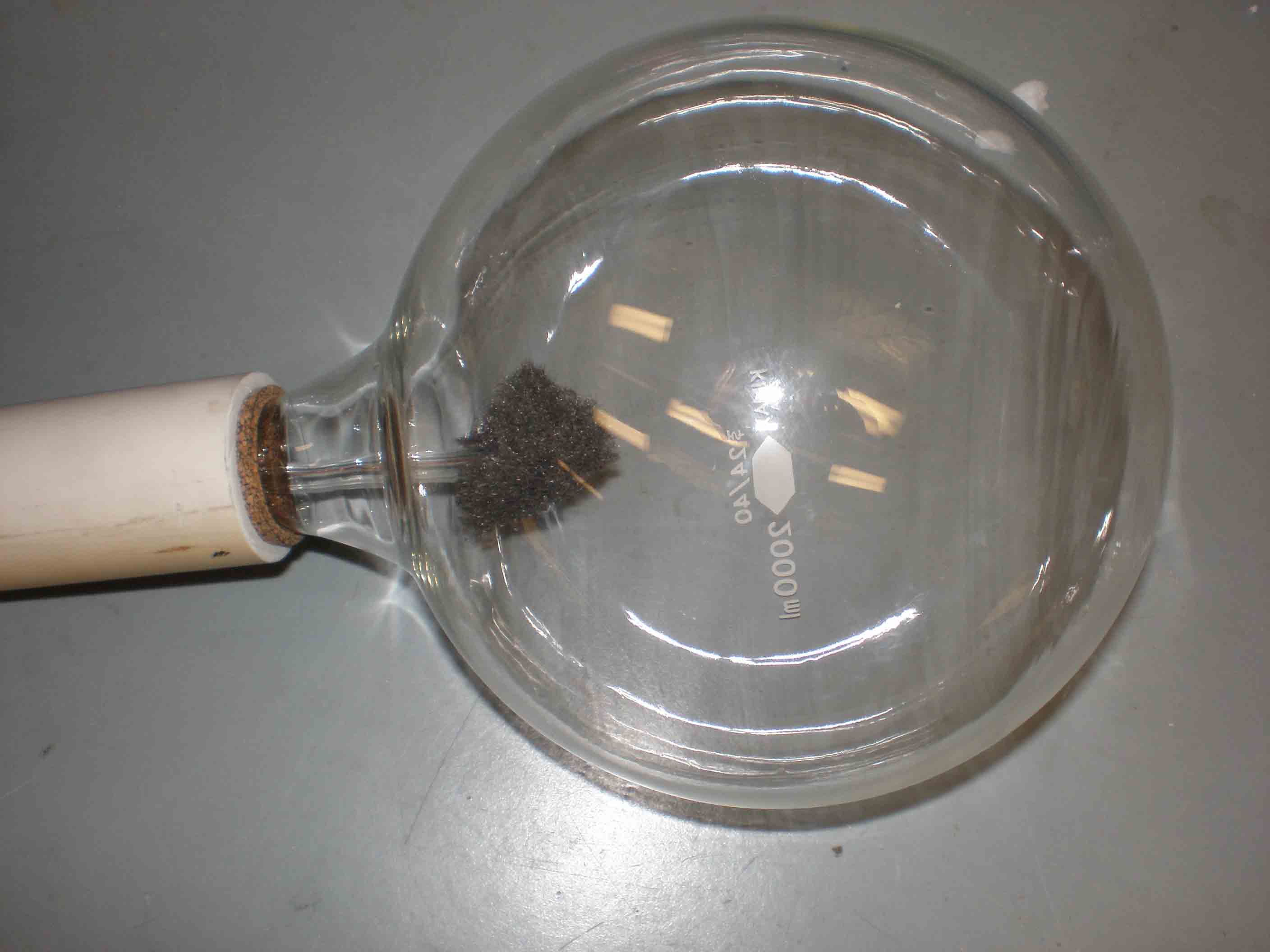

Close up of flask with steel wool

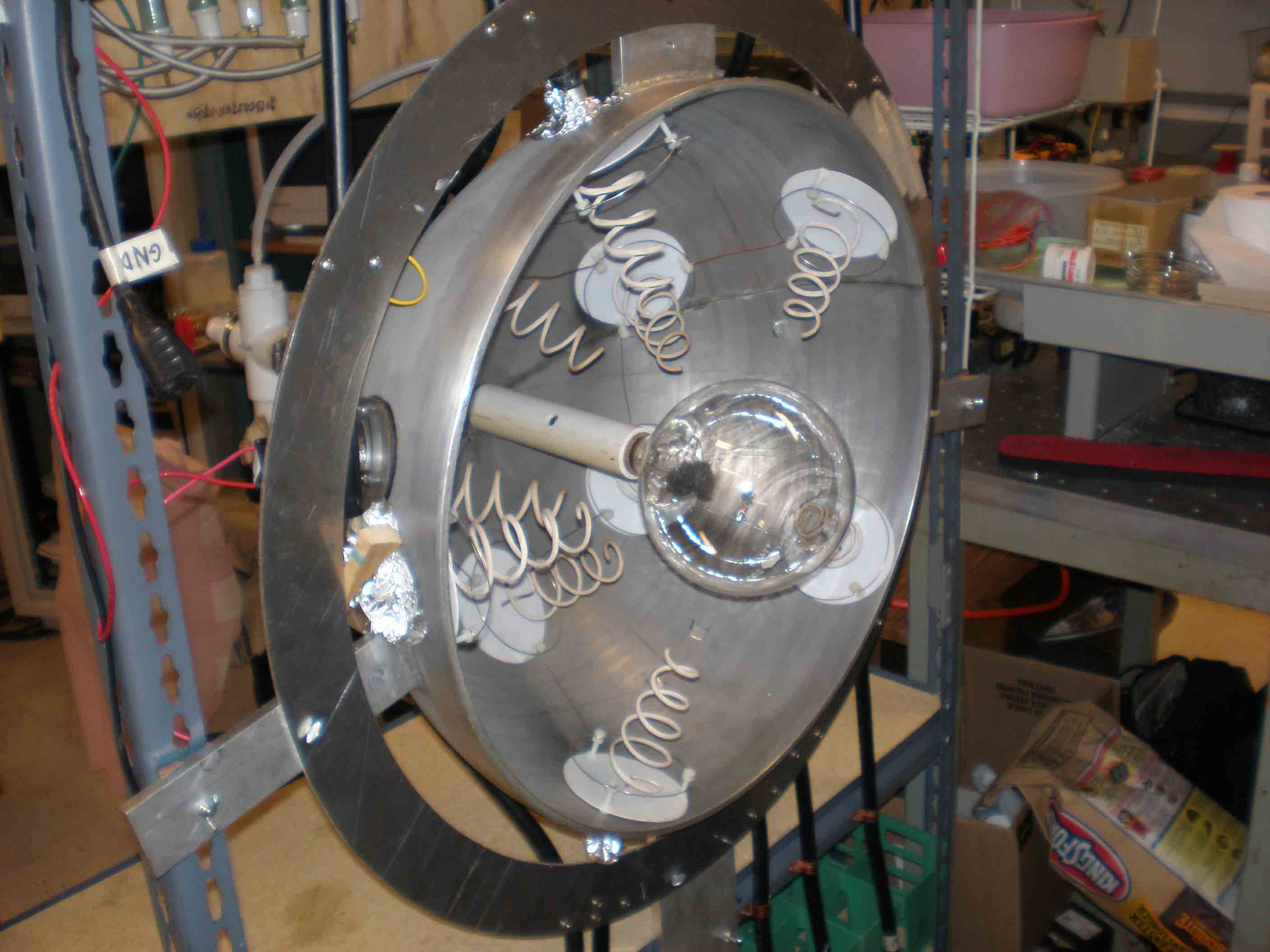

Flask mounted in S hemisphere with steel wool

Close up of flask mounted in S hemisphere

Deborah Dorland visits the lab, Xmas eve '07

Deborah feels the power

Me with capacitor bank

Showing off my new lab coat and sparker

Full figure with S hemisphere, flask
